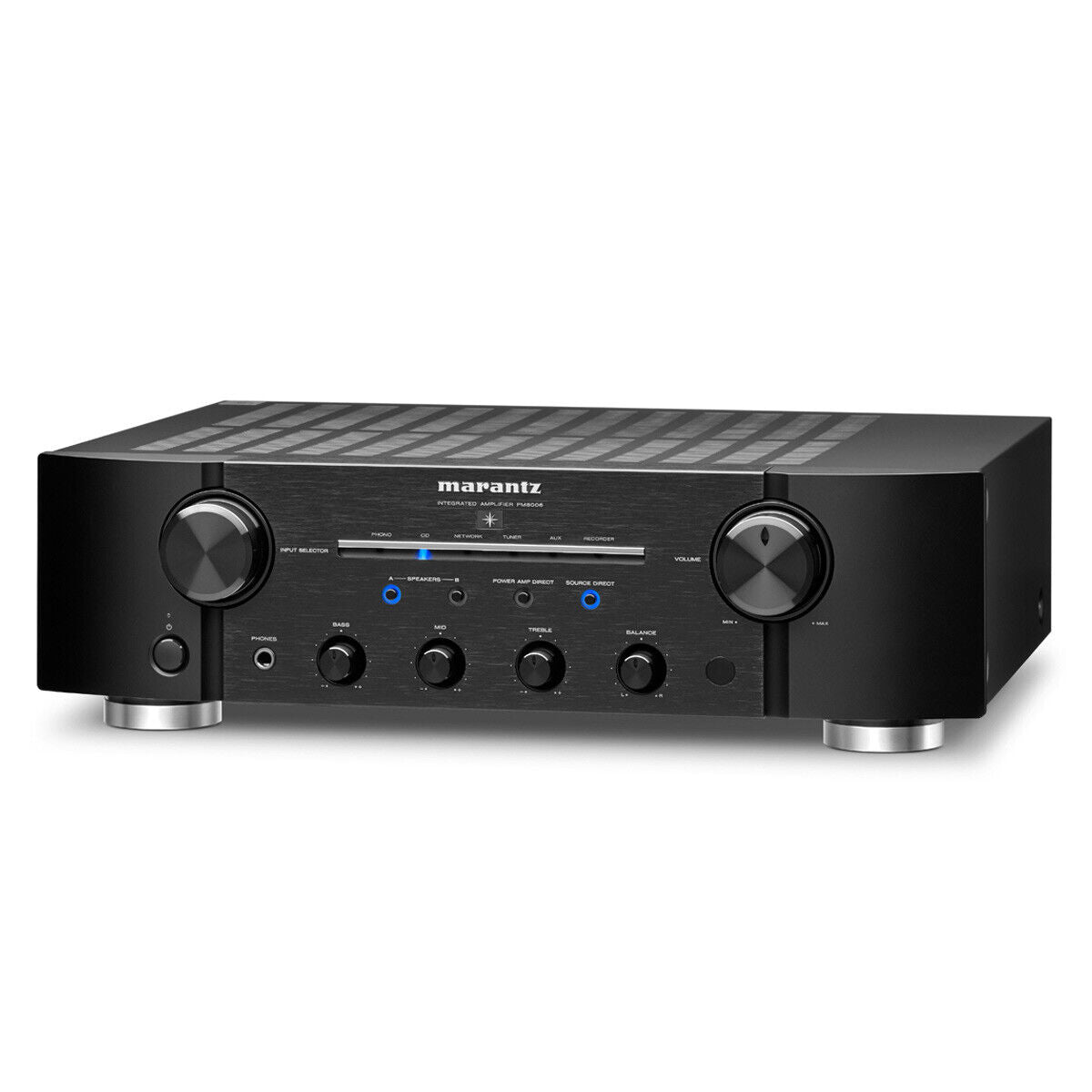

With a fully discrete current feedback design the PM8006 integrated amplifier is perfect for audiophiles wanting both excellent music quality and flexible operation. It offers a powerful 2x 70W into 8 ohm while the symmetrical circuits ensure optimal imaging. To ensure the most involving musical experience the amplifier uses a new Marantz-designed electric volume control for high linearity and best-in-class channel separation and to make the most of vinyl replay there’s the brand-new Marantz Musical Phono EQ phono preamp stage designed to get the purest signal from beloved vinyls by minimized noise levels.
Features
Integrated current feedback amplifier with 2x 70W / 8 ohm RMS
Wide bandwidth reproduction to fill your room with renowned Marantz sound
Newly designed electric volume circuit
High linearity and best-in-class channel separation
Exceptional Marantz Musical Phono EQ stage
Purest signal from beloved vinyls by minimized noise levels
Marantz proprietary HDAM-SA3 circuits
Wider dynamic range with lower distortion for the output stage
Triple layer bottom plate
Minimizes vibration
Gold-plated inputs/outputs include Phono (MM) input
Best connection for all sources
Double shielded Toroidal Transformer and high quality customized components
Delivering high level of clean power for pure amplification
High quality original Marantz SPKT-1+ Speaker Terminals (A / B switchable)
Improved connection to speakers
What's in the Box:
PM8006 Integrated Amplifier
Quick start guide
CD-ROM/Owner's manual
Safety instructions
Power cord
Remote control
AAA batteries
Specifications
RMS power output (20Hz - 20kHz simultaneous drive of both channels)
70W x 2 (8Ω/ohms load)
100W x 2 (4Ω/ohms load)
Total harmonic distortion (20Hz - 20kHz simultaneous drive of both channels 8Ω/ohms load): 0.02%
Output bandwidth (8Ω/ohms load 0.06%): 5Hz - 60kHz
Frequency response (CD 1W 8Ω/ohms load): 5Hz - 100kHz ±3dB
Damping factor (8Ω/ohms load 40Hz - 20kHz): 100
Input sensitivity/input impedance
Phono (MM): 2.0mV/47kΩ/kohms
CD tuner network aux recorder: 220mV/20kΩ/kohms
Power amp Direct In: 1.6V/15kΩ/kohms
Output voltage/output impedance - Pre Out: 1.6V/600Ω/ohms
Maximum allowable Phono input level (1kHz) MM: 80mV
RIAA deviation (20Hz - 20kHz): ±0.5dB
S/N (IHF-A 8Ω/ohms load)
Phono (MM): 87dB (5mV input 1W output)
CD tuner network aux recorder: 106dB (2V input rated output)
Power amp Direct In: 125dB (rated output)
Tone control
Bass (50Hz): ±10dB
Mid (900Hz): ±6dB
Treble (15kHz): ±10dB
Channels: 2
Audio inputs: 6
Audio outputs: 1
Pre-out: 1
Phono input: MM
Damping factor: 100
Input sensitivity MM: 2mV/47kOhm
Signal-to-noise ratio MM: 87dB
Input sensitivity - high level: 200mV/20kOhm
Signal-to-noise ratio - high level: 106dB (2V input)
Input sensitivity - power amp Direct In: 1.6V/15kOhm
Signal-to-noise ratio - power amp Direct In: 125dB
Power requirement: AC 230V 50/60Hz
Power consumption: 220W
Power consumption in standby mode: 0.2W
Dimensions (approx.): 14.92" x 17.32" x 5.04"
Weight (approx.): 26.46 lbs.
