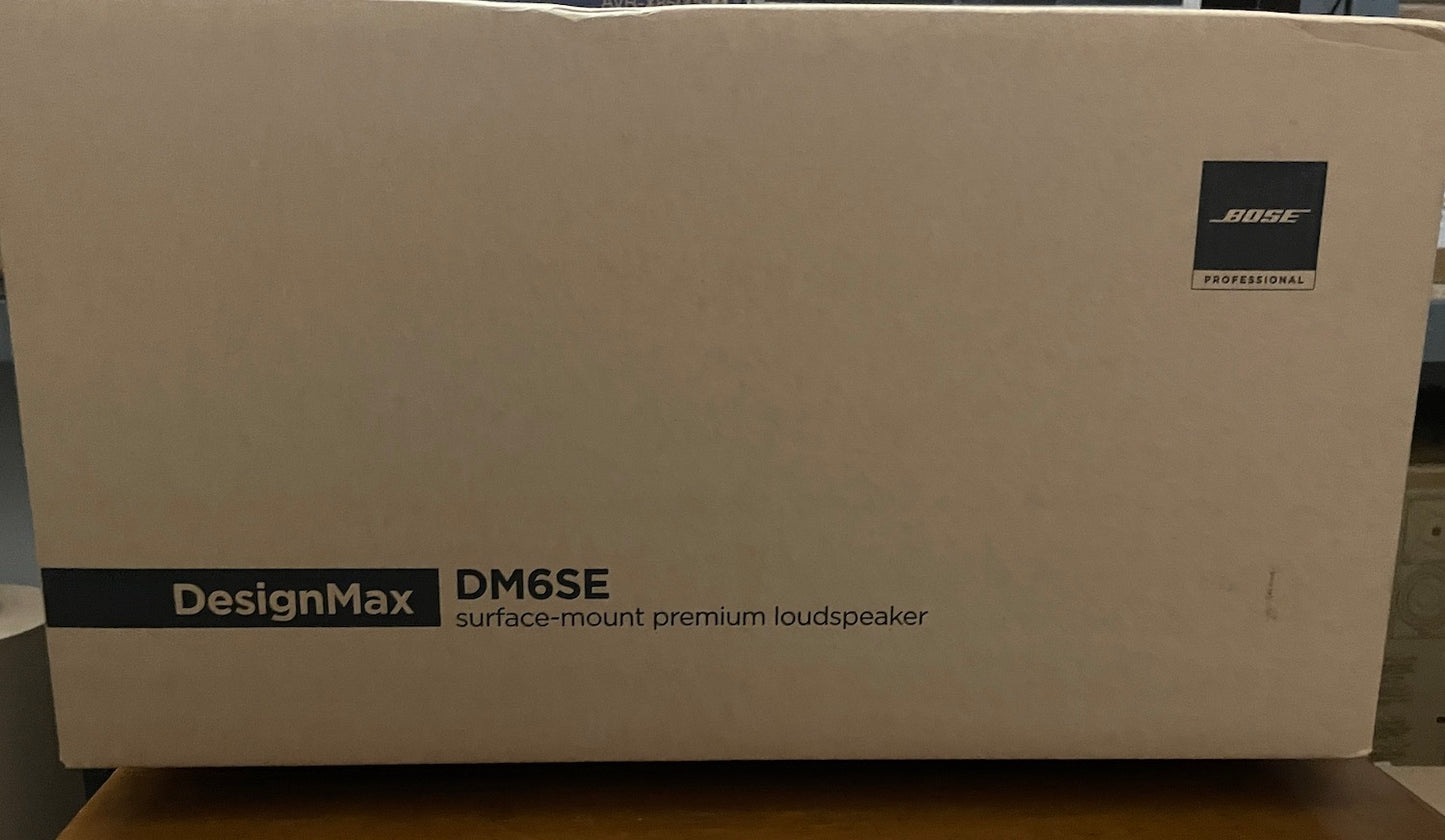

Bose Professional DesignMax DM6SE Surface Mounted Loudspeaker, Pair of White

Bose Professional DesignMax DM6SE Surface Mounted Loudspeaker, Pair of White

PRICE:
Regular price $615.00 USD
Regular price $0.00 USD Sale price $615.00 USD
Sale Sold out

CONDITION: New

Shipping calculated at checkout.
No reviews

product description

With coaxial two-way drivers, the 125-watt DesignMax DM6SE loudspeaker offers rich lows and clear, intelligible highs — along with premium aesthetics that complement any commercial sound installation. The DM6SE features a 6.5-inch woofer and a 1.25-inch coaxial tweeter mounted within the Dispersion Alignment system, delivering a frequency range of 59 Hz – 20 kHz. The DM6SE is surface-mounted, IP55 outdoor-rated, and locks onto a hidden QuickHold U-bracket for fast, secure installation.



Combine DesignMax models to complete any design, big or small — 12 loudspeakers to mix and match, from 2-inch, low-profile models to 8-inch, high-SPL compression-driver loudspeakers and outdoor-rated options

Deliver rich lows and clear, intelligible highs with coaxial two-way drivers — no DSP or EQ required. For even better sound, use select Bose DSPs and amplifiers to enable Bose loudspeaker EQ and SmartBass processing, which expands performance and response at any listening level

Ensure a consistent listening experience throughout the room with the Dispersion Alignment system, which matches the acoustic pattern of the woofer to the pattern of the tweeter

Blend with any room design with elegant form factors, minimum-bezel grilles available in black or white, and removable logos

Reduce installation time with the patented QuickHold mounting system, which also reduces strain, hassle, and the chance of product damage

Install easily with industry-standard accessories — all models include Euroblock connectors; in-ceiling models include plenum-rated backcans, tile bridges, and front-access audio wiring that makes installation and troubleshooting easier

Install DM6SE outside — IP55 rating with standard aluminum grille for outdoor use



Technical Summary

Frequency Response (+/-3 dB)
70 - 20,000 Hz

Nominal coverage (H x V)
125° conical

Power Handling, peak
500 W

Maximum SPL @ 1m
111 dB

Frequency Range (-10 dB)
59 - 20,000 Hz

Power Handling, long-term continuous
125 W

Sensitivity (SPL/1W @ 1 m)
90 dB

Nominal Impedance
8 Ω (transformer bypass)
