Bose RoomMatch loudspeakers and PowerMatch amplifiers: Technical overview

Video will open in a new window
Using the eBay App? Paste link into a browser window:

[isdntekvideo]

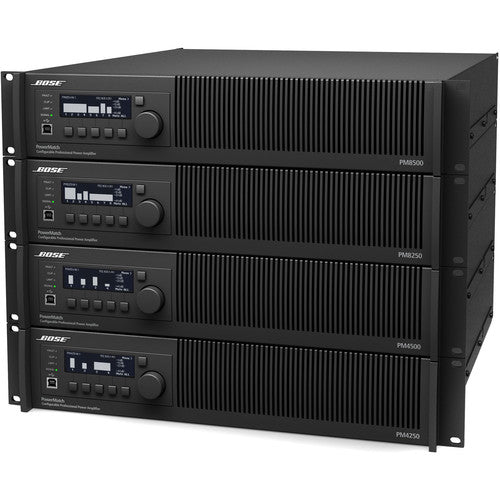

The Bose PowerMatch PM8500 configurable professional power amplifier provides concert-quality sound with a high level of scalability and configurability for fixed installation sound reinforcement systems. PowerMatch amplifier utilizes numerous Bose technologies to deliver a combination of performance, efficiency and ease of installation - all in a reliable, proprietary design.

Key Features

QuadBridge technology

Auto-Standby/Auto-Wake function

Dual voltage and current feedback loop

PeakBank power supply

Fast-tracking power factor correction (PFC)

QuadBridge technology

Allows each 4-channel loudspeaker block to be configured as Mono, V-Bridge, I-Share or Quad modes, allowing the total available power of the amplifier block to be allocated to one or more output channels. The amplifier is capable of driving both low impedance and 70/100V loudspeaker loads directly.

Auto-Standby/Auto-Wake function

When enabled, this function automatically enters/exits Standby mode, allowing the system to consume less power.

Dual voltage and current feedback loop

Proprietary design combines efficiency with a unique current and voltage feedback loop circuit that continuously monitors and controls both the current and voltage delivered to the loudspeaker load. Independent of power level and load impedance, the amplifier consistently delivers the widest possible dynamic range, frequency response and lowest possible distortion.

PeakBank power supply

Regenerative 4-quadrant power supply enables higher power density while allowing the re-use of energy from reactive loads that is normally wasted in conventional designs. This highly efficient amplifier design delivers sustainable and repeatable low frequency response.

Fast-tracking power factor correction (PFC)

Efficiently manages the current drawn from the AC mains, allowing the amplifier to drive loudspeakers to maximum output longer without power fluctuation. PFC provides superior transient response and functions at peak burst power much longer than conventional amplifier designs to satisfy the requirements of even the most demanding program material.
