product description

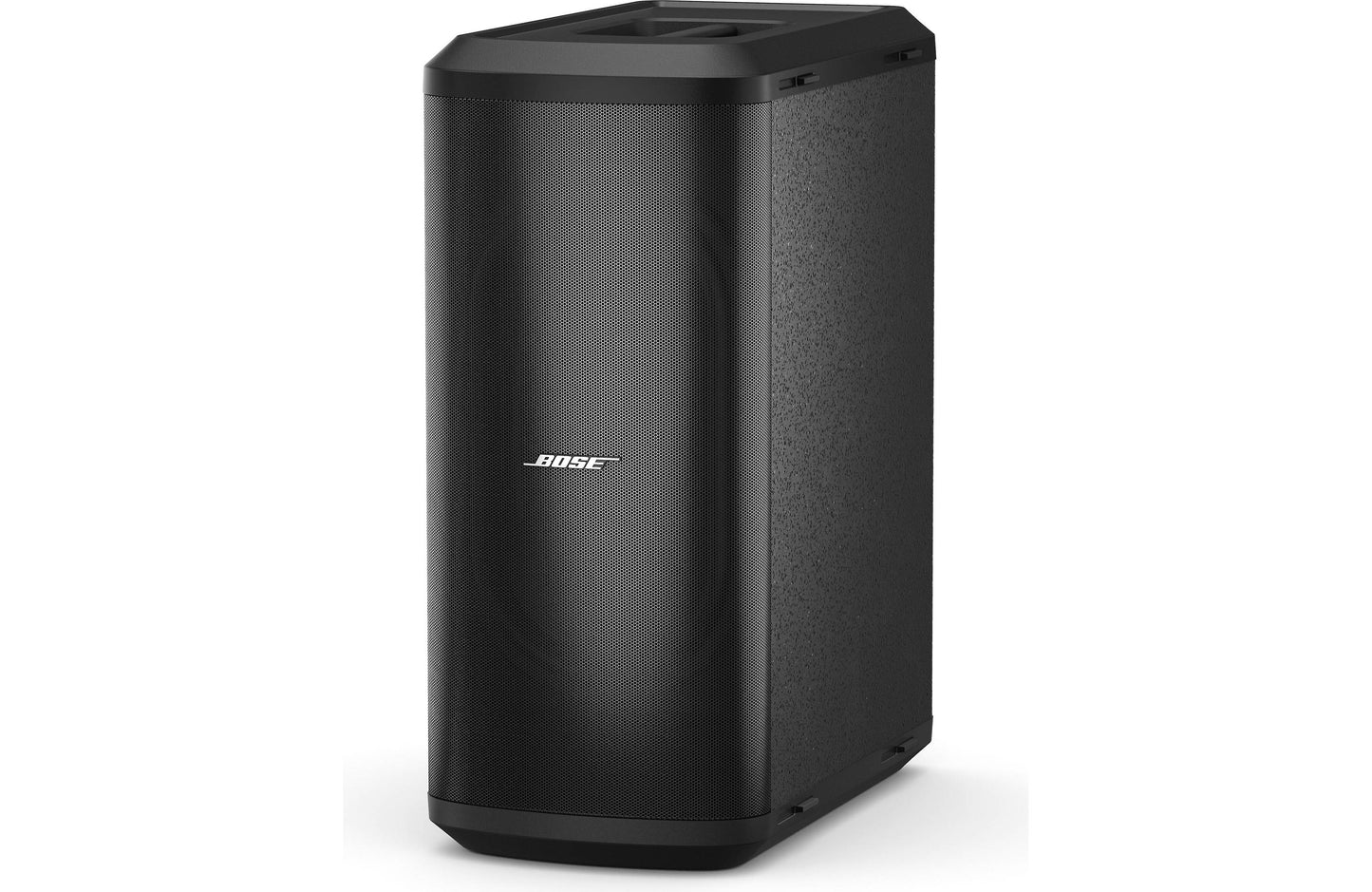

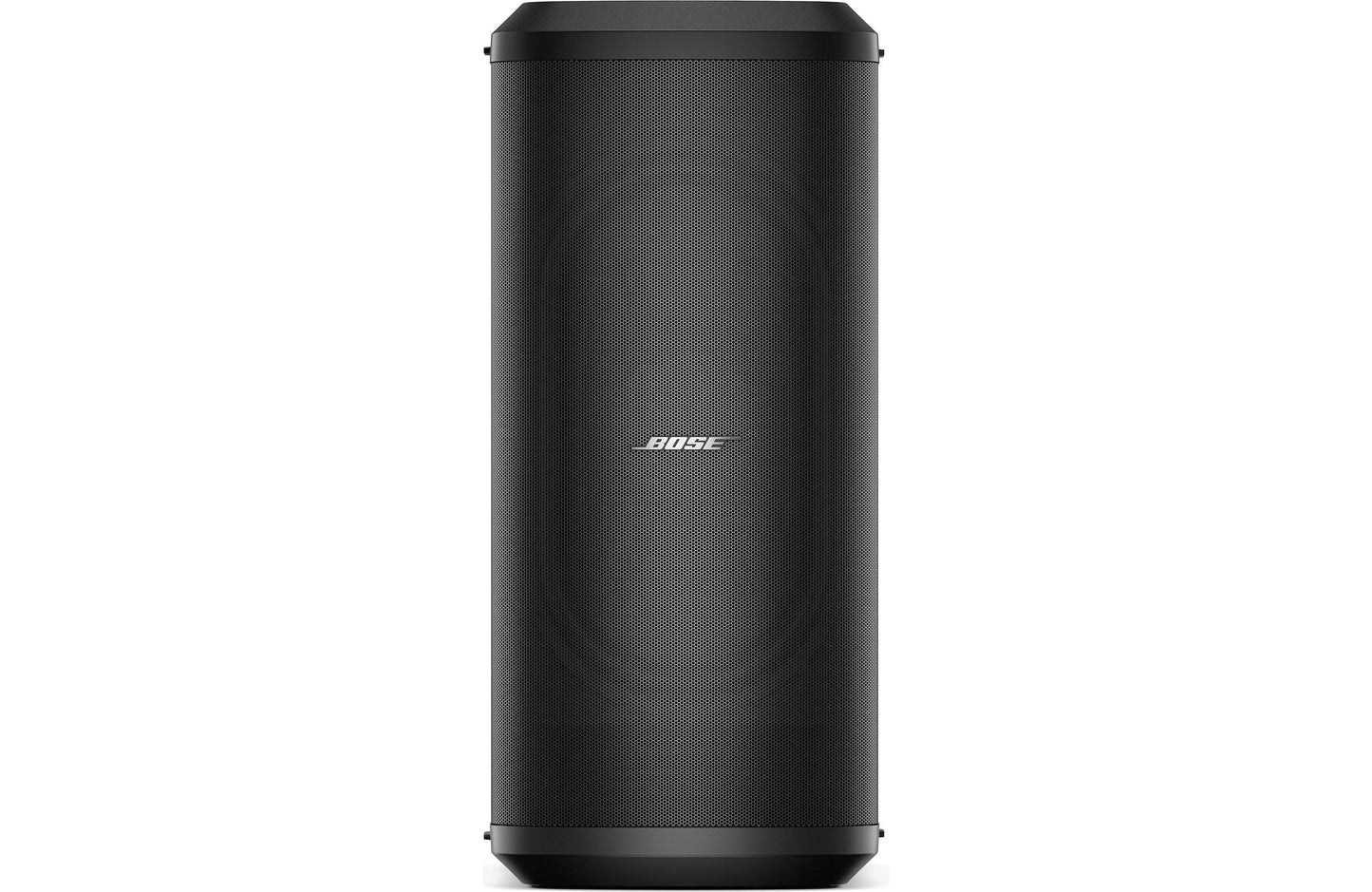

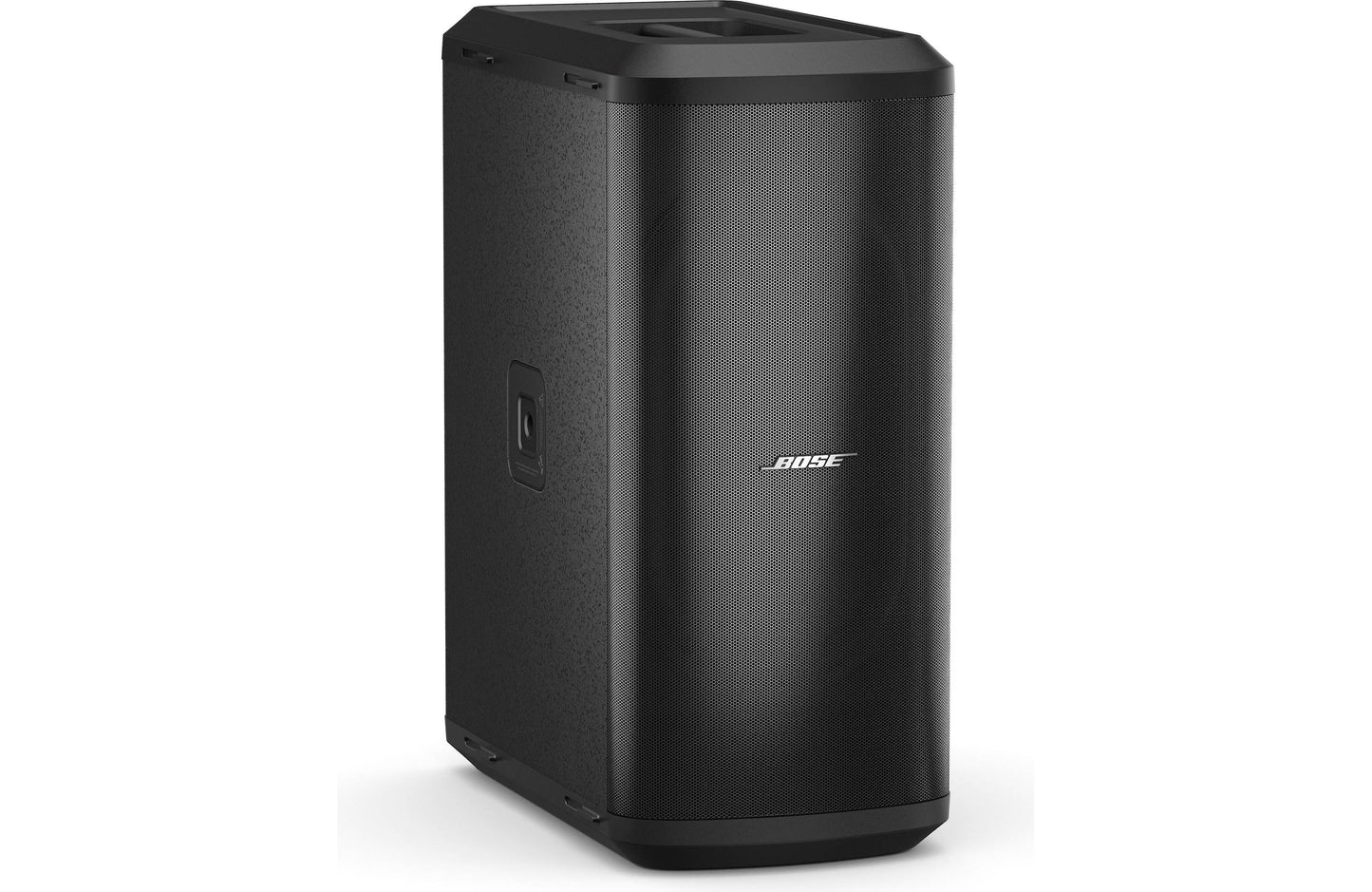

Bose's Sub2 module is a great way to add the bass you crave to just about any PA system. This powered portable bass module cranks the lows down to 37 Hz with a 1000-watt amp driving the 10" x 18" oval driver. You can connect it to the Bose L1 Pro32 system for extra bass reinforcement, or this sub can also be paired with a Bose S1 Pro system to create a super-effective compact PA. The integrated M20 connector makes it easy to attach a variety of portable PA systems.

Product highlights:

• powered bass module
• compatible with Bose L1 Pro32 and Bose S1 Pro systems
• line-in and line-out EQ
• selectable high-pass filter on line out
• integrated M20 threaded insert

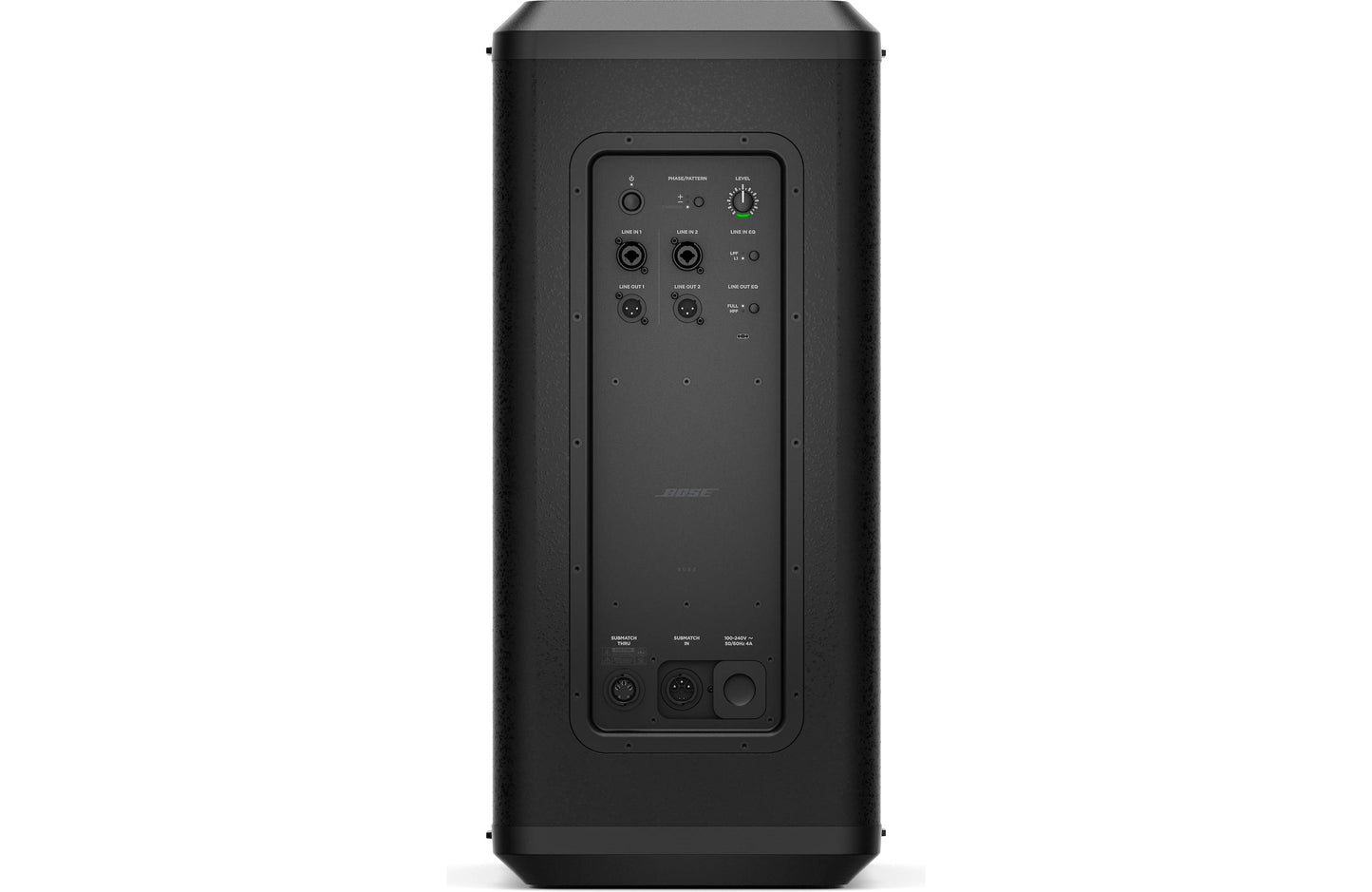

• inputs: 2 x combo XLR-1/4" TRS inputs (line); SubMatch
• outputs: 2 x XLR outputs; SubMatch
• dimensions: 12"W x 27.2"H x 21.7"D
• weight: 51.7 lbs
• warranty: 2 years
• MFR # 840917-1100

What's in the box:

Bose Sub2 owner's manual

• Powered subwoofer
• 6.5' Power cord (IEC 3-pin)
• Nylon cover
• Quickstart guide (Eng/Span/Fren/Others)
• Firmware information
• Safety instructions

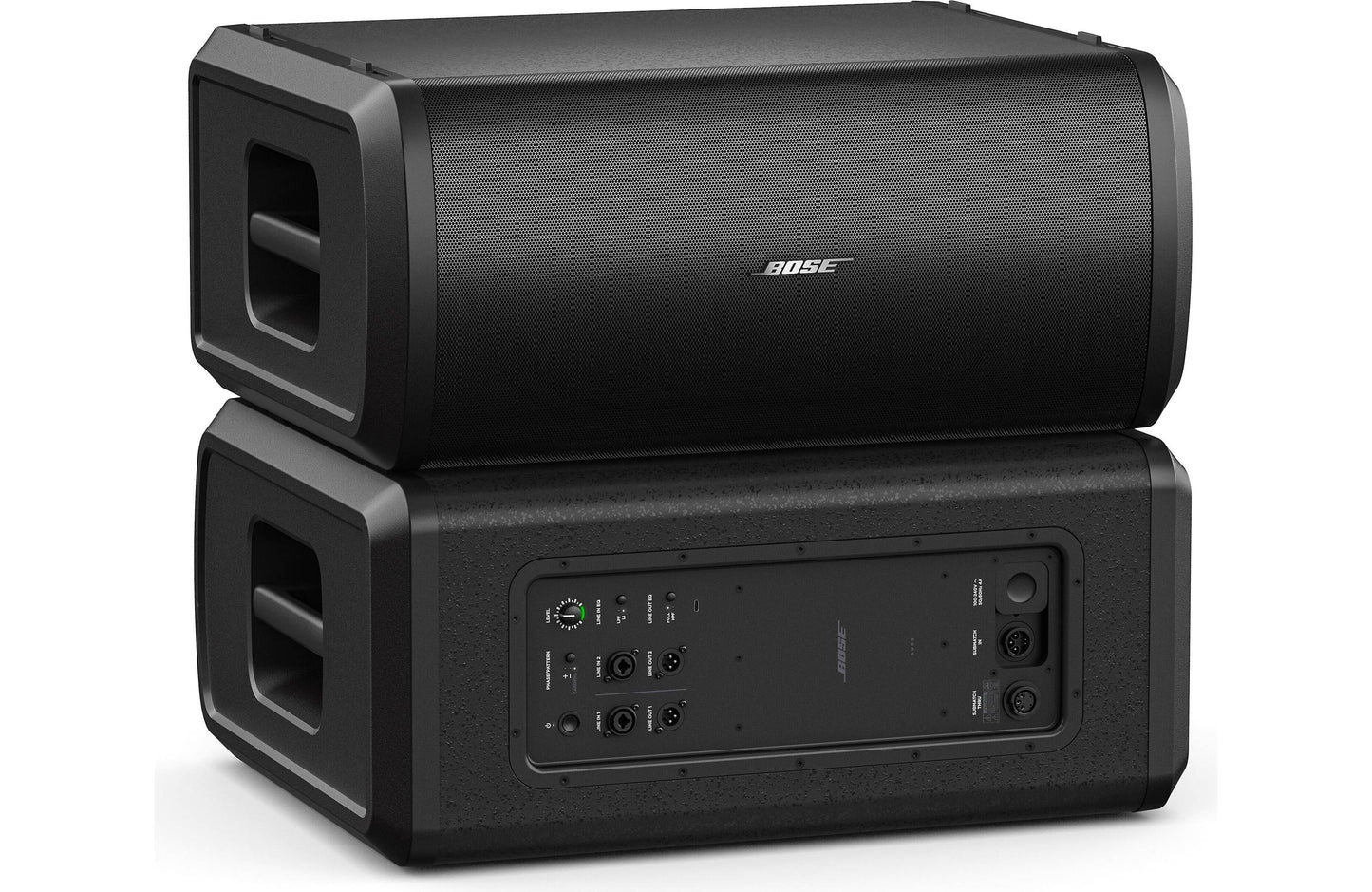

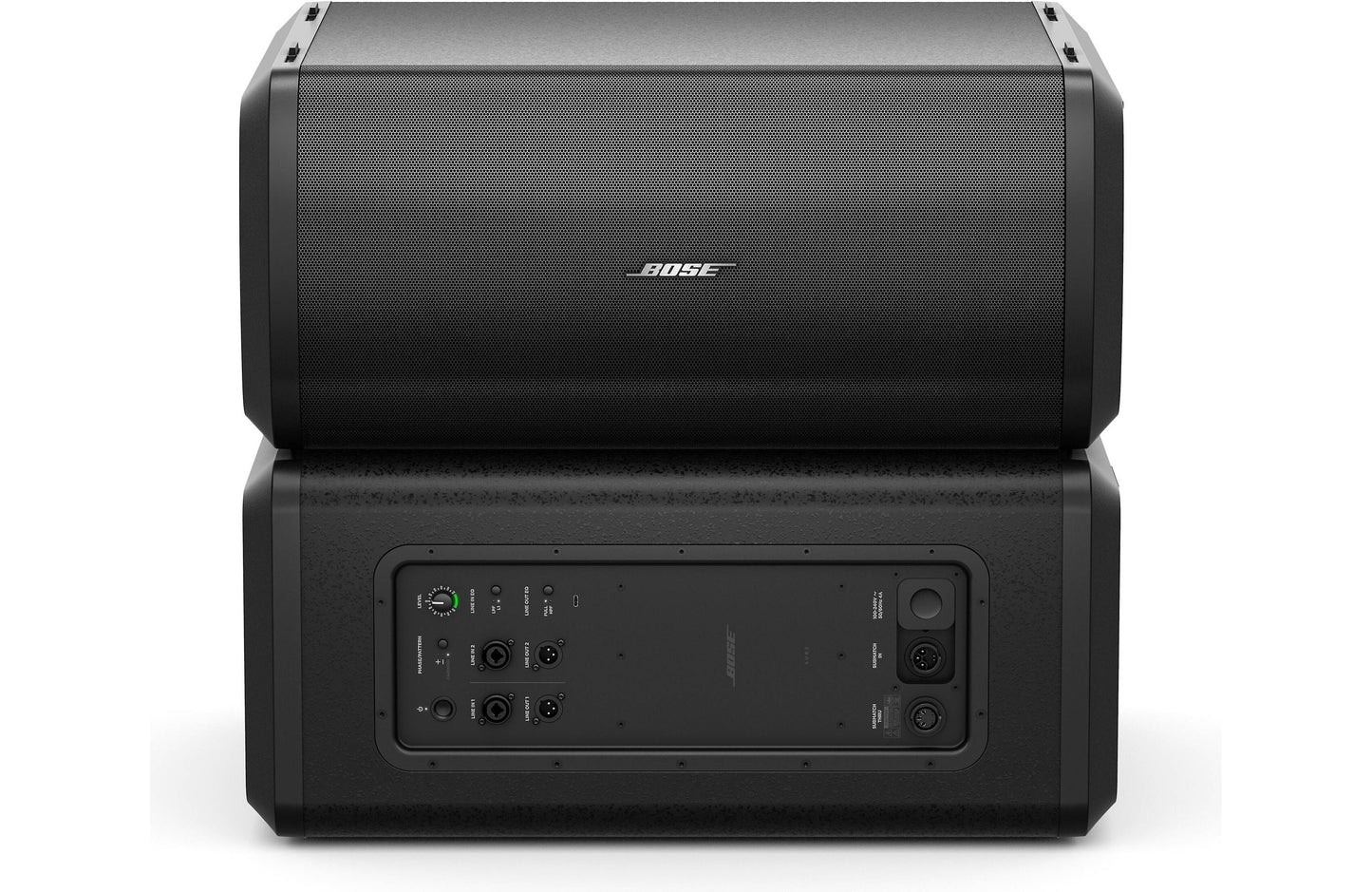

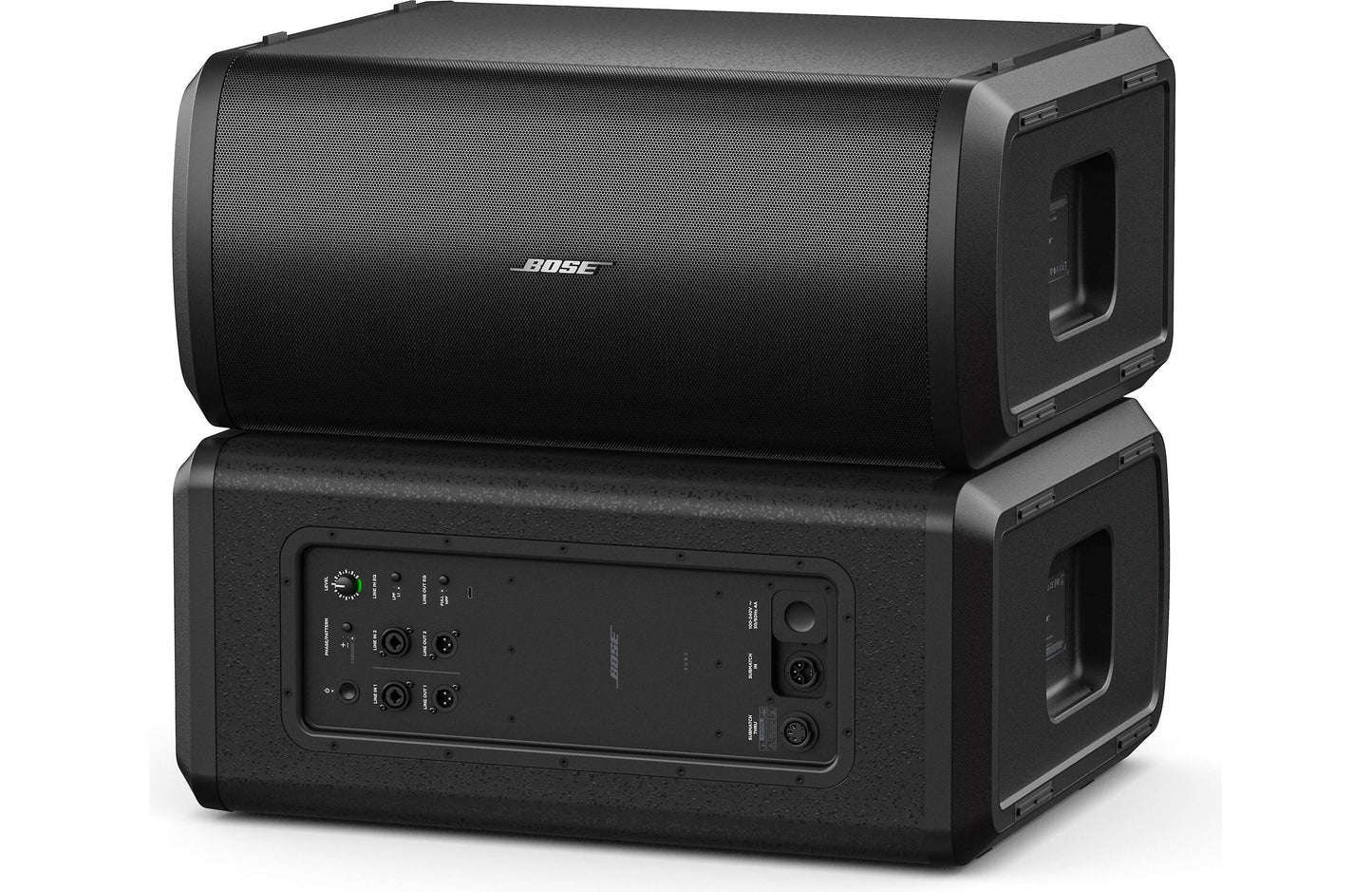

Adding a second Sub2 to your L1 Pro32 system is easy, and gives you extra control over your bass. Stack the two bass modules horizontally, one facing forward and the other backward. Properly set up, this arrangement will cancel out low-frequency waves behind the subs so your stage sound stays much cleaner, while the audience enjoys powerful bass. For other applications, the Sub2's pair of XLR/TSR inputs can sum a stereo input for low-frequency reproduction, then and pass the mids and highs out to additional loudspeakers. The high-pass filter located on the line out EQ lets you tailor the output to your needs.
