product description

A versatile in-wall speaker from Def Tech

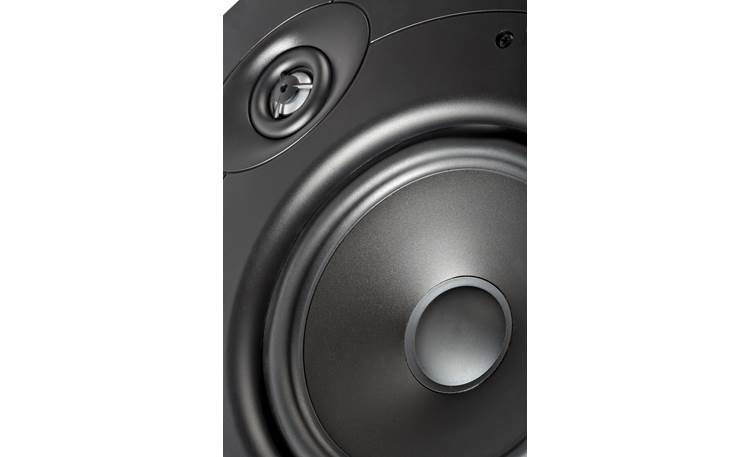

Want crystal-clear center home theater sound without taking up any shelf space? Then check out Definitive Technology's DT8LCR in-wall speaker. It combines an 8" woofer with a 1" aluminum dome tweeter for rich, dynamic sound that's great for movie soundtracks and music alike.

This multi-talented speaker can also be used as a left, right, or center-channel speaker. The drivers are specially configured to provide optimal performance whether you mount the speaker vertically or horizontally.

DIY installation

If this is a do-it-yourself install, check out my guide to installing in-wall speakers, along with our selection of in-wall speaker wire. You can paint the included magnetic grille to have your speaker blend in with your décor.

Product highlights:

ideal for an in-wall music system or as a left or right channel in a home theater system

1" aluminum dome tweeter

8" mineral-filled polypropylene woofer

frequency response: 27-30,000 Hz (±3 dB)

recommended amplifier power: 20-100 watts

sensitivity: 89 dB

impedance: 8 ohms

ultra-thin bezel and paintable magnetic grille provide seamless integration into your décor

cutout dimensions: 8-3/4"W x 12-3/4"H

overall dimensions: 9-7/8"W x 13-13/16"H

mounting depth: 3-3/4"

warranty: 5 years

MFR # UGDE

What's in the box:

Definitive Technology DT8LCR owner's manual

In-wall loudspeaker

Grille

Mounting template

Carboard paint shield

Owner's Guide

Online Product Registration Information

Important Installation Instructions
