product description

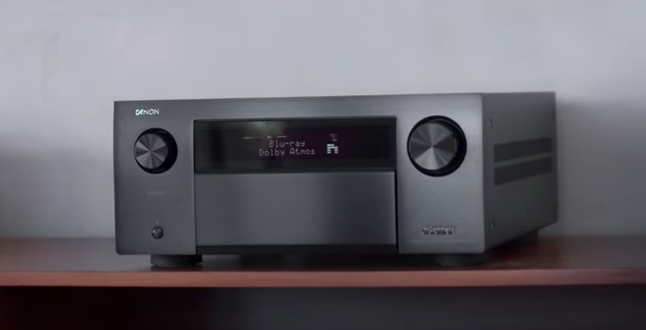

The Denon AVR-A1H

Video will open in a new window
Using the eBay App? Paste link into a browser window:

[isdntekvideo]

Power and processing:

15-channel amplifier

150 watts per channel into 8 ohms (20-20,000 Hz) at 0.05% THD, with 2 channels driven

Dolby®, DTS®, and Auro-3D® surround sound decoding

Dolby Atmos and DTS:X Pro processing for use with in-ceiling or "height" speakers for more enveloping home theater sound

Dolby Atmos Height Virtualization and DTS Virtual:X® create three-dimensional effects without height speakers

IMAX® Enhanced reproduces the full dynamic range of specially encoded IMAX soundtracks from compatible sources

Audyssey speaker calibration and system optimization includes:

MultEQ® XT32 auto setup and room calibration delivers balanced, dynamic sound with enhanced surround performance

Dynamic Volume anticipates loud sounds to keep volume levels even

Dynamic EQ improves dialogue, bass response, and surround channel levels at lower volumes

Sub EQ HT provides individual calibration for four subwoofers, for even bass response throughout the room

Low Frequency Containment reduces the amount of bass that bleeds into other rooms

Audyssey MultEQ Editor app for further audio customization (paid app; not included)

AL32 Processing Multichannel technology upsamples audio signals for clear, smooth sound

Digital and streaming music options:

built-in Wi-Fi for listening to music from a networked PC, free internet radio, and music services

HEOS Built-in technology wirelessly connects compatible HEOS components for whole home audio

includes support for Pandora®, TIDAL, SiriusXM, and Spotify® (subscription required for some services)

free HEOS app offers easy Wi-Fi control, settings adjustments, and music selection and playback

works with Amazon Alexa and Google Home voice control assistants

Apple AirPlay 2 lets you stream directly from an iPhone® or iPad® and ask Siri to play Apple Music®

supports multi-room audio with compatible wireless speakers

built-in Bluetooth for wireless music listening with smartphones, tablets, and compatible computers

plays high-resolution digital music files via USB storage device or a networked computer (PCM up to 24-bit/192kHz resolution; DSD up to 5.6 MHz)

Denon's Compressed Audio Restorer improves sound quality of MP3s and other digital music files

works as a Roon player (requires subscription and Roon Core running on your network)

Roon Core is media server software that runs on your computer, NAS drive, or other compatible hardware

Multi-room audio/video:

three-room/three-source output

powered stereo outputs for second and third rooms allow playback in three rooms at once

All Zone Stereo mode ensures that all zones stay in sync when playing the same source

supports both analog and digital audio connections

HDMI dual-zone switching for watching video content from different sources in two zones simultaneously

Zone 2/3 compatible audio sources: HDMI audio, optical/coaxial digital inputs, analog audio inputs, AM/FM tuner, USB, Bluetooth, and HEOS music apps

cannot select different USB/Bluetooth/network sources for each zone

Connections:

HDMI 2.1 audio/video switching: 7 in, 3 out

all inputs and 2 of 3 outputs support 8K/60Hz and 4K/120Hz video

all inputs and outputs support 4K/60Hz video

HDCP 2.3 technology ensures compatibility with Ultra HD sources and TVs

HDR-compatible for extended picture contrast and brightness with compatible TVs and HDR-encoded content

supports HDR10, HDR10+, Dolby Vision®, Dynamic HDR, and HLG

gaming-optimized video processing technologies for a smooth, lag-free gaming experience

Variable Refresh Rate (VRR), Auto Low Latency Mode (ALLM), and Quick Frame Transport (QFT) reduce or eliminate lag and frame tearing

supports ARC (Audio Return Channel) and eARC (Enhanced Audio Return Channel)

eARC receives uncompressed surround sound signals including Dolby Atmos, DTS:X, and DTS:X Pro via the HDMI connection with your compatible TV

digital audio inputs: 2 Toslink optical, 2 coaxial

6 analog stereo RCA audio inputs

4 gold-plated RCA inputs

one input that can be assigned for either RCA or XLR connection

MM (moving magnet) phono input for connecting a turntable

analog balanced stereo XLR input for a compatible audio source

front-panel USB port for audio playback from USB flash drives

17.4-channel preamp outputs, including four discrete line-level subwoofer outputs for more precise multi-subwoofer setups

mono unbalanced RCA and balanced XLR subwoofer outputs

Pre-Amplifier Mode lets you use this receiver as a preamp/processor by bypassing the internal amplification when paired with optional external power amps

RS-232C and remote (IR) connections for use with optional third-party controllers

dual 12-volt trigger outputs for sending power commands to external gear, like a power amplifier or cooling fan

gold-plated speaker terminals

full-sized headphone jack

removable power cord

Setup, dimensions, and warranty:

free Denon AVR Remote app lets you use your Apple® or Android™ device as a Wi-Fi remote

Setup Assistant guides you through the initial connection process and settings

17-1/8"W x 7-3/4"H x 19-5/8"D (10-3/16"H with Wi-Fi antennas raised)

weight: 70.5 lbs.

warranty: 5 years

MFR # AVR-A1H

What's in the box:

Denon AVR-A1H owner's manual

15.4ch AV receiver

6' AC power cord

Remote control (RC-1250)

2 "AAA" batteries

Sound calibration microphone (ACM1HB)

2 WLAN/Bluetooth antennas

FM wire antenna

AM loop antenna

Cardboard microphone stand

Quick Start Guide

Warranty Information

Safety Instructions

Notes on radio

Sheet of self-adhesive cable labels

Spotify brochure

Heos brochure

Microphone Stand Assembly Instructions

"Bluetooth/WiFi Certified" note
