product description

Power and processing:

9-channel amplifier

105 watts per channel into 8 ohms (20-20,000 Hz) at 0.08% THD, with 2 channels driven

Dolby®, DTS®, and Auro-3D® surround sound decoding

Dolby Atmos® and DTS Neural:X processing for use with in-ceiling or "height" speakers for more enveloping home theater sound

Dolby Atmos Height Virtualization and DTS Virtual:X create three-dimensional effects without height speakers

IMAX® Enhanced reproduces the full dynamic range of specially encoded IMAX soundtracks from compatible sources

Audyssey speaker calibration and system optimization includes:

MultEQ® XT32 auto setup and room calibration delivers balanced, dynamic sound with enhanced surround performance

Dynamic Volume anticipates loud sounds to keep volume levels even

Dynamic EQ improves dialogue, bass response, and surround channel levels at lower volumes

Sub EQ HT provides individual calibration for four subwoofers, for even bass response throughout the room

Low Frequency Containment reduces the amount of bass that bleeds into other rooms

Audyssey MultEQ Editor app for further audio customization (paid app; not included)

360 Reality Audio creates an immersive, realistic music experience when connected to a compatible streaming device via HDMI

future compatibility with optional Dirac Live® advanced speaker calibration system (coming soon in 2023; requires purchase of software license)

requires installation of Dirac Live software on a Mac or PC prior to calibration

Digital and streaming music options:

built-in Wi-Fi for listening to music from a networked PC, free internet radio, and music services

HEOS Built-in technology wirelessly connects compatible HEOS components for whole home audio

includes support for TuneIn, Pandora®, SiriusXM, and Spotify® (subscription required for some services)

free HEOS app offers easy Wi-Fi control, settings adjustments, and music selection and playback

works with Amazon Alexa and Google Assistant voice controllers

Apple AirPlay 2 lets you stream directly from an iPhone® or iPad® and ask Siri to play Apple Music®

supports multi-room audio with compatible wireless speakers

built-in Bluetooth for wireless music listening with smartphones, tablets, and compatible computers

Bluetooth transmission for sending audio from the receiver to Bluetooth-enabled headphones

play audio through Bluetooth headphones only, or through Bluetooth headphones and connected speakers simultaneously

plays high-resolution digital music files via USB storage device or a networked computer (PCM up to 24-bit/192kHz resolution; DSD up to 5.6 MHz)

Multi-room audio/video:

dual-room/dual-source output

amp assign function lets you use surround back speaker outputs for front height, Zone 2, Front B, or bi-amping front speakers

using powered 2nd-room output allows 7.4-channel sound in main room

line-level 2nd-room output for use with a separate amplifier or powered speakers

All Zone Stereo mode ensures that both zones stay in sync when playing the same source

All Zone TV Audio lets you play surround sound in your main room and downmixed stereo in your 2nd room

supports both analog and digital audio connections

HDMI dual-zone switching for watching video content from different sources in two zones simultaneously

Zone 2 compatible audio sources: HDMI audio, optical/coaxial digital inputs, analog audio inputs, AM/FM tuner, USB, Bluetooth, and HEOS music apps

cannot select different USB/Bluetooth/network sources for each zone

Connections:

HDMI 2.1 audio/video switching: 6 in, 3 out

all inputs and 2 out of 3 outputs support 8K/60Hz and 4K/120Hz video

all inputs and outputs support 4K/60Hz video

HDCP 2.3 technology ensures compatibility with Ultra HD sources and TVs

HDR-compatible for extended picture contrast and brightness with compatible TVs and HDR-encoded content

supports HDR10, HDR10+, Dolby Vision®, Dynamic HDR, and HLG

3D signal pass-through

gaming-optimized video processing technologies for a smooth, lag-free gaming experience

Variable Refresh Rate (VRR), Auto Low Latency Mode (ALLM), Quick Frame Transport (QFT), and Quick Media Switching (QMS) reduce or eliminate lag and frame tearing

eARC receives uncompressed surround sound signals including Dolby Atmos and DTS:X via the HDMI connection with your compatible TV

digital audio inputs: 2 Toslink optical, 2 coaxial

5 analog stereo RCA audio inputs

MM (moving magnet) phono input for connecting a turntable

11.4-channel preamp outputs

add a stereo amplifier to expand your system to 11 channels

four discrete line-level subwoofer outputs for more precise multi-subwoofer setups

front-panel USB port for audio playback from USB flash drives

Ethernet port for network connection

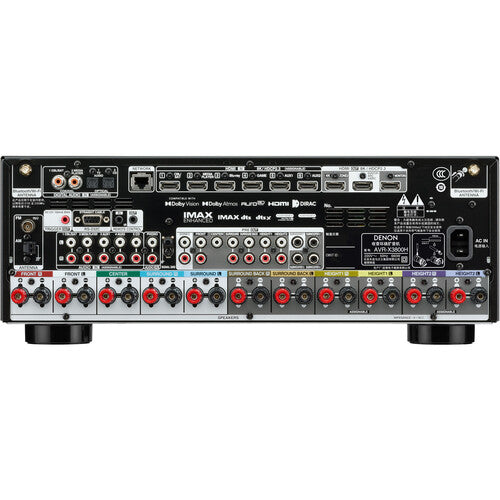

outputs for 11 speakers (Front L/R, Center, Surround L/R, Surround Back L/R, Height1 L/R, Height2 L/R)

receiver can power a maximum of 9 channels at once

RS-232C, remote (IR), and 12-volt trigger connections for use with optional third-party controller

full-sized headphone jack

removable power cord

General features:

free Denon AVR Remote app lets you use your Apple® or Android™ device as a Wi-Fi remote

Setup Assistant guides you through the initial connection process and settings

HDMI standby pass-through allows HDMI switching without powering up receiver

intuitive, full-color on-screen guide

AM/FM tuner

remote control

17-1/8"W x 6-5/8"H x 15-5/16"D (9-5/16"H with Wi-Fi antennas raised)

weight: 27.6 lbs.

warranty: 3 years

MFR # AVR-X3800H

What's in the box:

Denon AVR-X3800H owner's manual

9.4ch AV receiver

6' AC power cord

Remote control (RC-1253)

2 "AAA" batteries

Sound calibration microphone (ACM1HB)

2 WiFi/Bluetooth antennas

FM wire antenna

AM loop antenna

Cardboard microphone stand

Quick Start Guide

Warranty Information

Safety Instructions

Notes on radio

Sheet of self-adhesive cable labels

Spotify brochure

Heos brochure

Microphone Stand Assembly Instructions

"Bluetooth/WiFi Certified" note

Optional Dirac Live note
