product description

Product highlights:

Power and processing:

7-channel amplifier

80 watts per channel into 8 ohms (20-20,000 Hz) at 0.08% THD, with 2 channels driven

custom transformer and hand-selected internal components help ensure clean, dynamic power

Dolby® and DTS® surround sound decoding

Dolby Atmos and DTS:X™ processing for use with in-ceiling or "height" speakers for ultra-enveloping home theater sound

Dolby Atmos Height Virtualization creates three-dimensional effects without height speakers

AccuEQ automatic speaker calibration optimizes your system's sound for your room (microphone included)

Streaming music options:

plays high-resolution digital music files via USB storage device or a networked computer (PCM up to 24-bit/192kHz resolution; DSD up to 11.2 MHz)

built-in Wi-Fi for listening to music from a networked PC, free internet radio, and music services

includes support for Pandora®, TIDAL, Amazon Music HD, and Spotify® (subscription required for some services)

compatible with Sonos Port — receiver turns on automatically and sets the right input when selected in the app

Apple AirPlay 2 lets you easily stream from an iPhone® or iPad® and ask Siri to play Apple Music®

built-in Bluetooth 4.2 for wireless music listening with smartphones, tablets, and compatible computers

Bluetooth transmission lets you send audio from the receiver to Bluetooth-enabled headphones

supports high-quality AAC, aptX®, and aptX HD audio streaming

Chromecast built-in for streaming music from the cloud with compatible mobile apps

DTS Play-Fi® multi-room music listening via Integra Music Control App

works with Amazon Alexa and Google Assistant voice control assistants

HDMI features:

HDMI audio/video switching: 6 in, 2 out

3 inputs and 2 outputs support 8K/60Hz and 4K/120Hz video (HDMI 2.1)

all inputs and outputs support 4K/60Hz video (HDMI 2.0b)

HDCP 2.3 technology ensures compatibility with Ultra HD sources and TVs

HDR-compatible for extended picture contrast and brightness with compatible TVs and HDR-encoded content

supports HDR10+, Dolby Vision™, and HLG (Hybrid Log Gamma)

supports ARC (Audio Return Channel) and eARC (Enhanced Audio Return Channel)

eARC receives uncompressed surround sound signals including Dolby Atmos and DTS:X via the HDMI connection with your compatible TV

gaming-optimized video processing technologies for a smooth, lag-free gaming experience

Variable Refresh Rate (VRR), Auto Low Latency Mode (ALLM), and Quick Frame Transport (QFT) reduce or eliminate lag and frame tearing

Multi-room audio:

two-room/two-source output

Zone 2 stereo preamp outputs for use with optional external receiver or amplifier

Zone 2 HDMI output

powered 2nd-room output (allows 5.2-channel sound in main room)

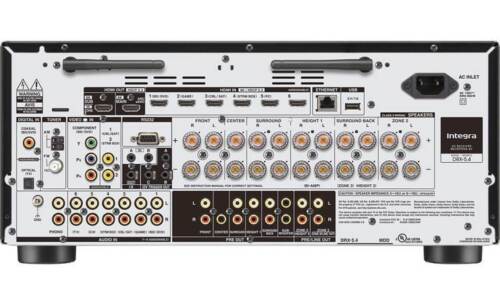

Other connections:

digital audio inputs: 1 Toslink optical, 1 coaxial

4 analog stereo RCA line-level audio inputs

MM (moving magnet) phono input for connecting a turntable

USB port for audio playback from USB flash drives (rear-panel)

outputs for 9 speakers (Front L/R, Center, Surround L/R, Height L/R, Zone 2 L/R)

receiver can power a maximum of 7 channels at once

dual mono RCA subwoofer outputs

full-sized front-panel headphone jack

RS-232C and IR (infrared) remote connections for use with optional third-party controllers

12-volt trigger outputs for sending on/off commands to optional external components

removable power cord

Dimensions and warranty:

17-3/16"W x 6-7/8"H x 16-1/8"D (9-3/16"H with Wi-Fi and Bluetooth antennas extended)

weight: 21.2 lbs.

warranty: 3 years

MFR # DRX2.4BMDD
