product description

Picture:

three 0.69" D-ILA panels with Full Digital Cinema 4K resolution (4096 x 2160 pixels each)

2-phase 8K e-shift yields projected image with double the pixels of 4K (over 17 million)

3rd-generation BLU-Escent laser diode/phosphor light engine delivers ultra-pure light with zero maintenance

High Dynamic Range (HDR10, HDR10+, HLG) for extended picture contrast and brightness with HDR sources

Theater Optimizer fine-tunes HDR based on projector settings and installation characteristics

Frame Adapt automatically optimizes HDR10 image quality

widescreen 16:9/17:9 aspect ratio (can also display 4:3 material)

recommended image size: 60" to 200"

light output: 2,200 lumens

40,000:1 native contrast ratio

17-element, 15-group all-glass 65mm lens provides excellent sharpness and edge-to-edge focus

Multiple Pixel Control image processor analyzes and optimizes images pixel by pixel

Clear Motion Drive frame interpolation with Motion Enhance reduces blur and judder and makes motion look smoother

wide color gamut — covers 100% of DCI P3 standard

color management system with 6-axis matrix

3D-capable (requires JVC's PK-EM2 3D Synchro Emitter and PK-AG3 active RF 3D glasses, both sold separately)

Low Latency Mode suppresses display delay for faster response with signals from PCs and game consoles

Image adjustments:

2X powered zoom/focus lens

±34% horizontal and ±80% vertical powered lens shift image adjustment

10-setting Installation Mode lets you easily customize picture settings/lens positions

ISF C3 (Certified Calibration Controls) for use in professional calibration

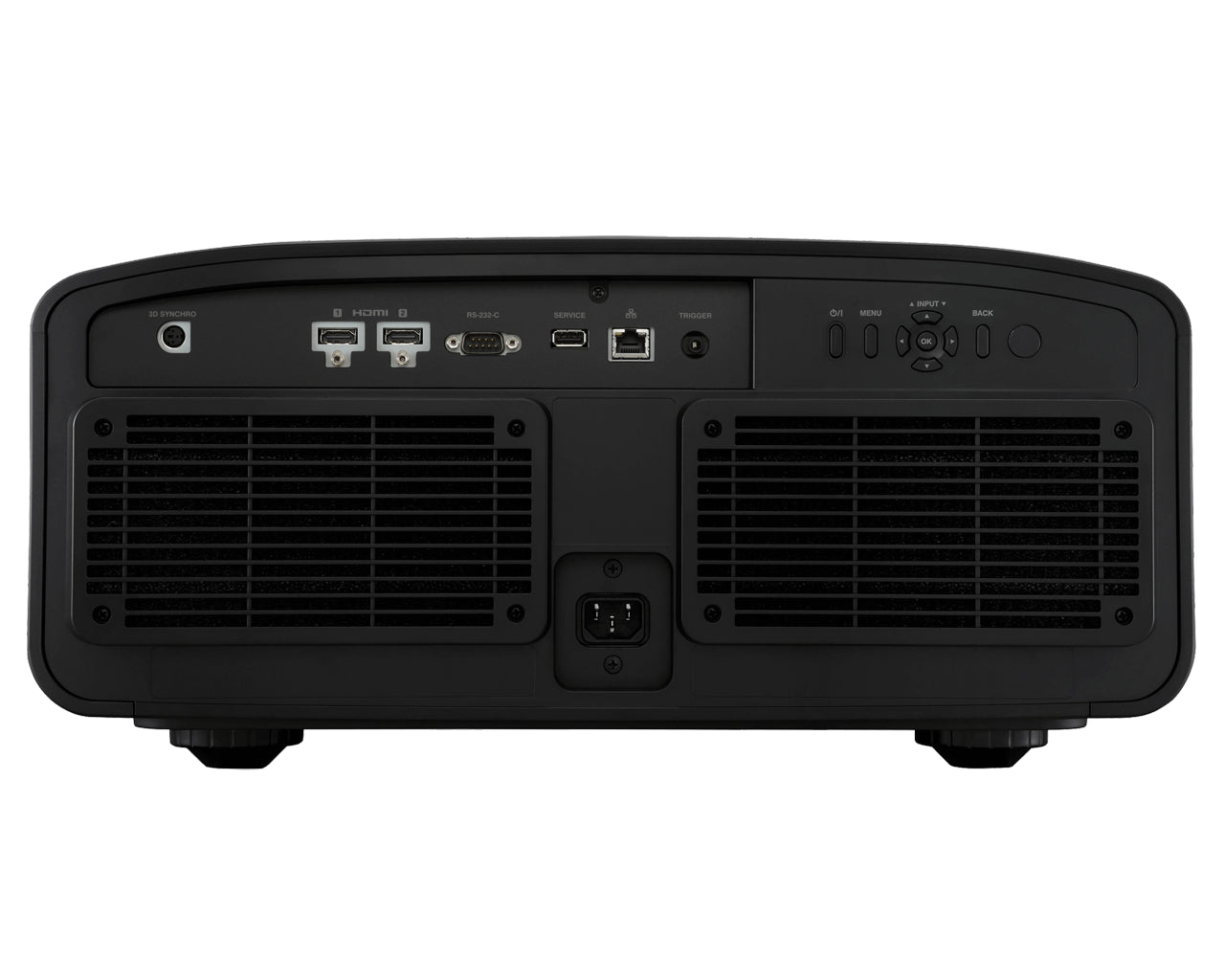

Connections:

two HDMI 2.1 inputs

both inputs accept 8K/60p and 4K/120p signals

both inputs are HDCP 2.3 compatible

use an HDMI 2.1 cable to ensure the best possible picture quality

does not support CEC (remote control via HDMI)

RJ-45 LAN port for controlling the projector via a network connection

USB Type-A input for firmware updates

RS-232C port for external control of the projector via compatible computer or third-party control device

3.5mm 12V trigger output for controlling a motorized screen or other device

3-pin mini-DIN connector for use with optional 3D sync emitter

detachable power cord

General features:

laser diode light source lasts up to 20,000 hours

ultra-quiet cooling fan (24 dB)

this projector does not include a built-in TV tuner

19-3/4"W x 9-1/4"H x 21-5/8"D (includes allowance for cable connections)

weight: 49.6 lbs.

warranty: 3 years

MFR # DLA-NZ7R

Item # 257DLANZ7R

What's in the box:

JVC DLA-NZ7R owner's manual

Projector

Remote control (RM-MH27)

2 "AAA" batteries

6.5' AC power cord

Lens cover

User Manual on CD-ROM

Quick Start Guide
