product description

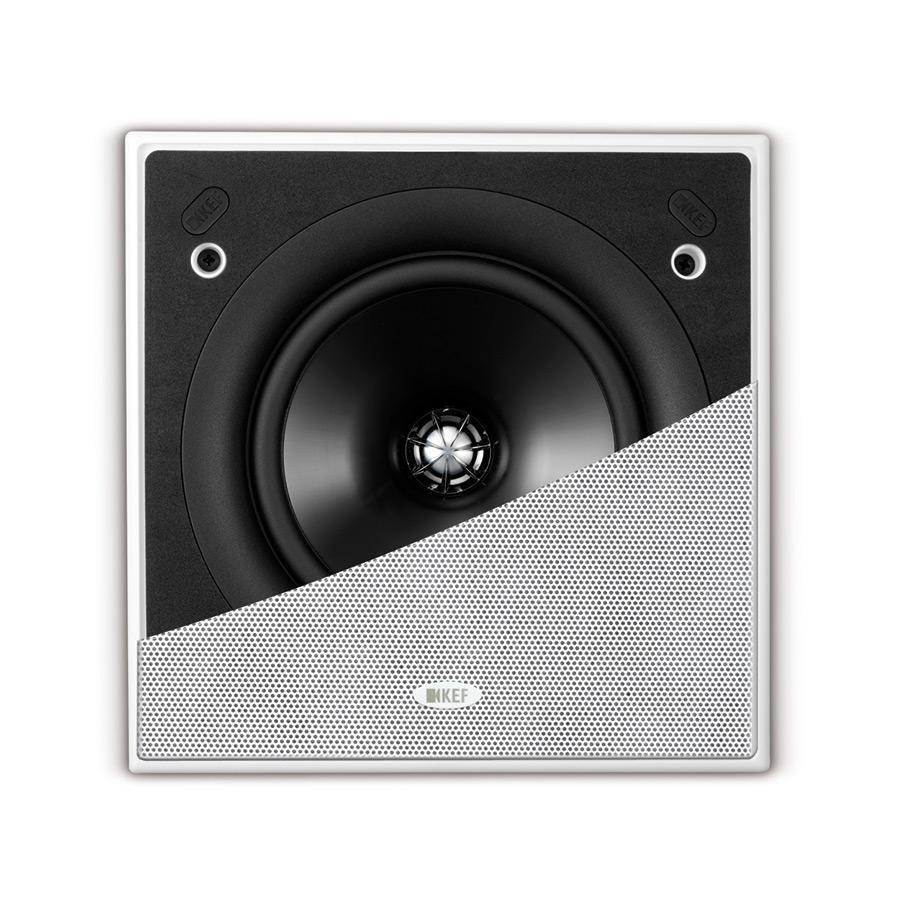

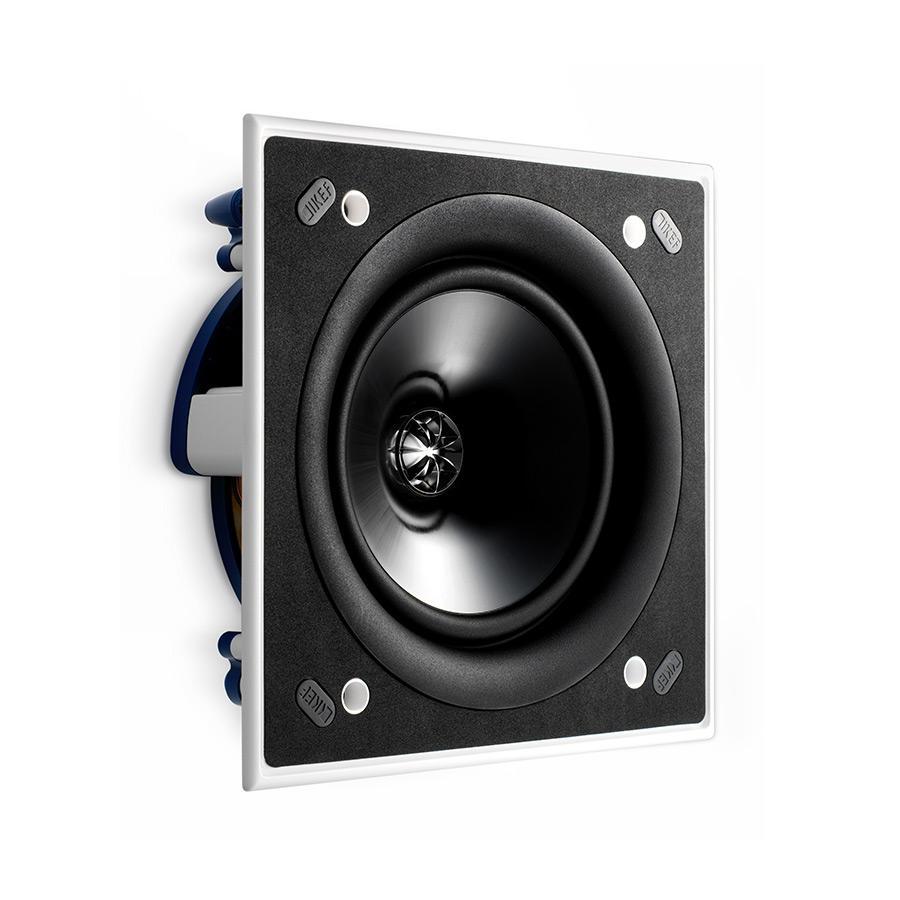

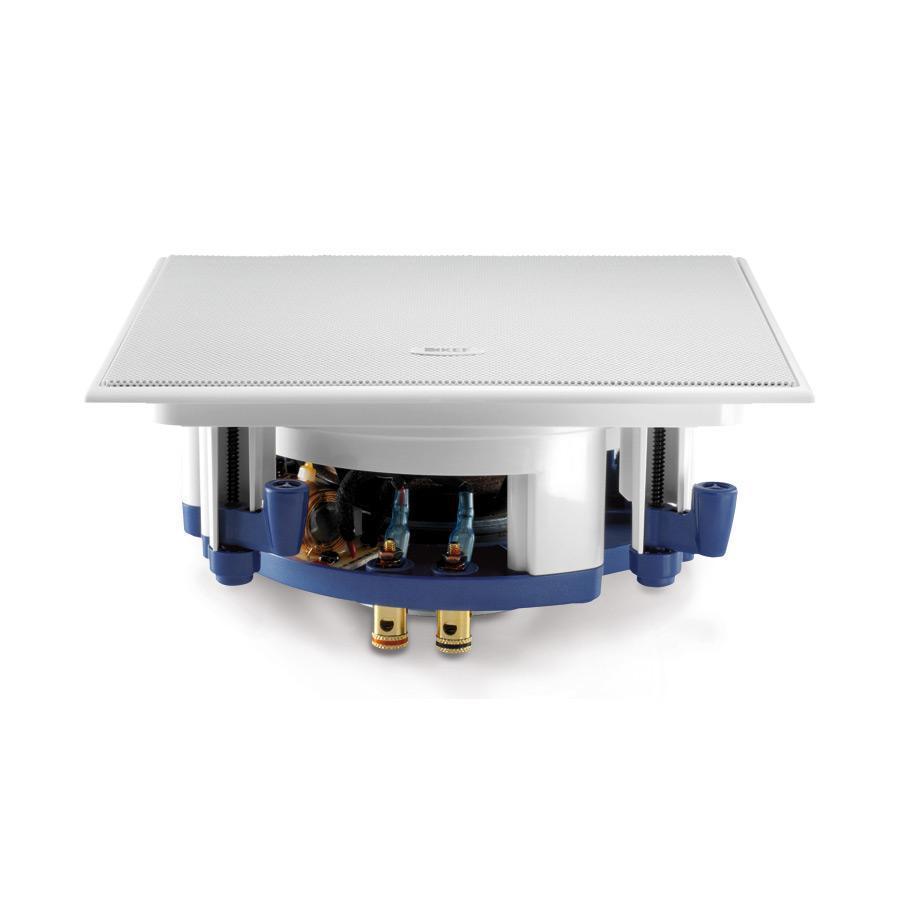

The stylish Ci160QS square in-wall / in-ceiling ultra thin bezel loudspeaker features a narrow rim allow for flawless integration into your ceiling and KEF's patented Uni-Q driver, which spreads sound over a wider area - enabling you to use fewer speakers while optimizing the soundstage.

Featuring KEF's sophisticated 'sit anywhere' Uni-Q driver array, which places the tweeter in the acoustic centre of the bass/midrange cone, this allows both the tweeter and woofer to act as a single point source that disperses the sound widely and evenly throughout the room. Together with the discreet Ultra Thin Bezel (UTB) design, offering the slimmest possible visible rim around the speaker, the Ci-Q Series range gives you tremendous freedom to position the speakers where you please.

Fast and Easy to Install

KEF’s architectural speaker design makes them so quick and easy to install that once the wire is run and the hole is cut in your wall or ceiling you can be listening to music in less than two minutes.

Nomimal  Impedance

8 Ohm

Sensitivity

89dB (2.83V/ 1m)

Crossover Frequencies

3.0kHz

Frequency Response

38Hz - 34kHz (±6dB) open backed

Drive Units

LF: 160mm (6.5in.)

HF: 19mm (0.75in.) Uni-Q

Recommended Amplifier Power

10 - 125W

Product External Dimension (H X W X D)

223 x 223 x 97 mm (8.78 x 8.78 x 3.82 in.)

Cut-Out Dimensions (H X W)

194 x 194 mm (7.64 x 7.64 in.)

Mounting Thickness

Ceiling Thickness (Maximum): 30mm (1.19 in.)

Ceiling Thickness (Minimum): 3mm (0.12 in.)

Mounting Depth From Surface

91mm (3.58in.)

Optional Rough In Frame

RIF160S

Optional Rear Enclosure

RNC160S

Net Weight

1.88kg (4.14lbs.)

Unit Measurement

Piece
