product description

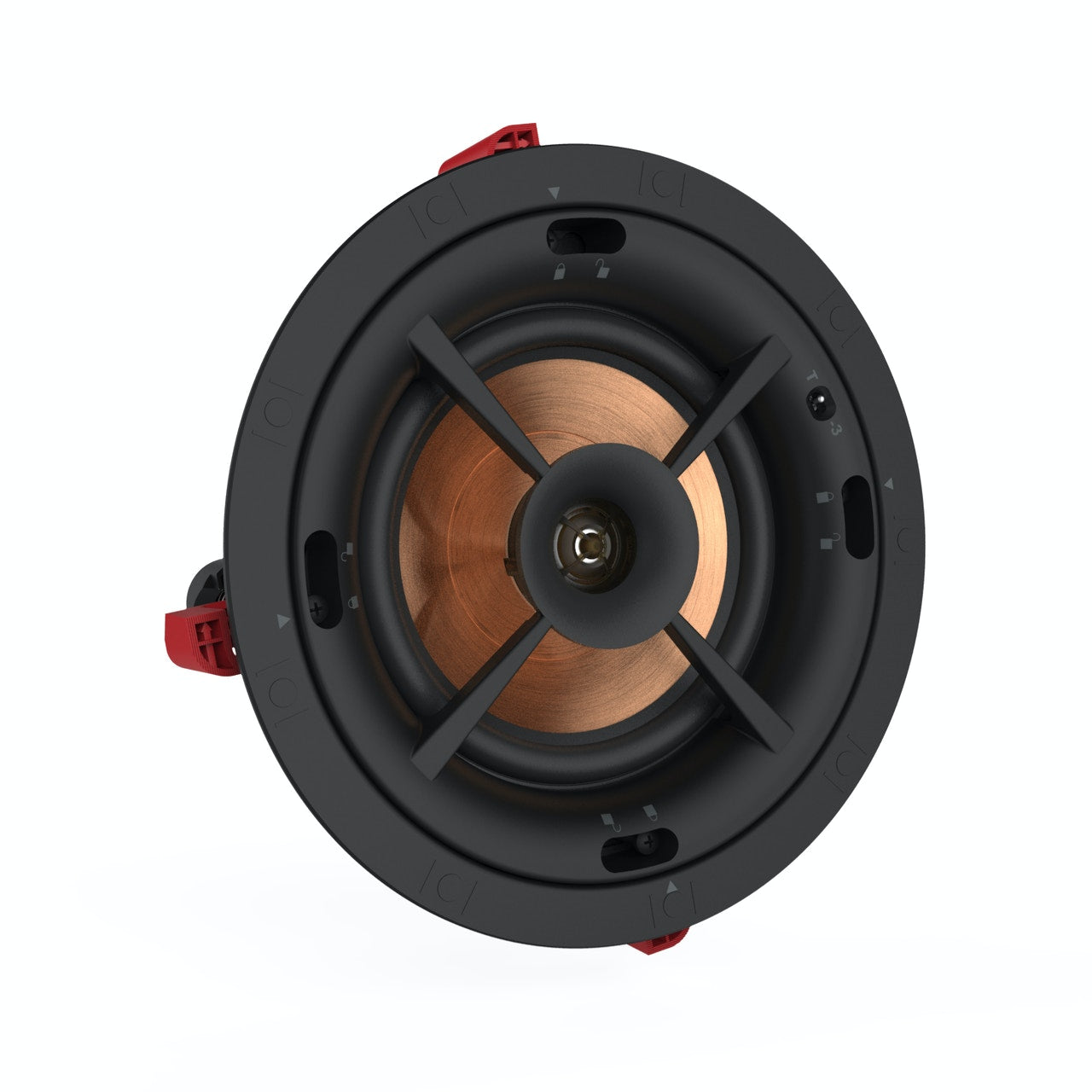

With a 6.5” Cerametallic woofer and a 1” Titanium Dome Tweeter mated to a composite coated round Tractrix® horn, the PRO-160RPC brings dynamic, powerful, detailed Reference Premiere sound to your distributed audio or home theater system.

Features:

TRUE REFERENCE PREMIERE ACOUSTICS
Using the same acoustic components and horn material as the highly acclaimed Reference Premiere box speaker line, the Professional Reference Premiere Architectural series perfectly combines the aesthetics of an architectural speaker with the pure performance and dynamic voicing of the Reference Premiere series. With a 6.5” Cerametallic woofer and a 1” Titanium Dome Tweeter mated to a composite coated round Tractrix® horn, the Pro-160RPC brings dynamic, powerful, detailed Reference Premiere sound to your distributed audio or home theater system.

SECUREFIT™ INSTALLATION SYSTEM
The exclusive modular installation system allows for the dog legs to be engaged by hand to a preset clamping force, eliminating the possibility of overtorquing, which can lead to breaking the dog leg or cracking the drywall. The speaker module is then screwed to the bezel (using machine screws instead of traditional drywall screws) for a more robust, acoustically stable installation than the competition.

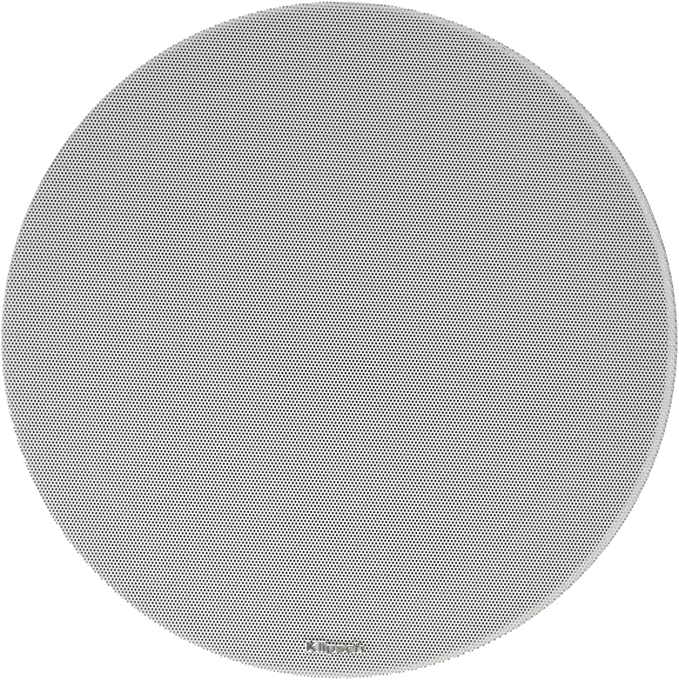

ALL NEW, BEZEL-FREE MAGNETIC GRILLE
A completely redesigned powercoated magnetic steel grille eliminates the bezel for seamless, pristine integration into the living space.

ROUND AND SQUARE GRILLES INCLUDED
Architectural speakers not only need to sound great, but blend in seamlessly with even the most luxurious interior designs. The Professional Series Reference Premiere inceiling speakers include both round and square grilles in the box, so they look great in any space right out of the box.

PVC PAINT SHIELD INCLUDED
Also included is a magnetic PVC paint shield that can be used to cover the speaker module to protect it from paint or construction dust during renovations or remodels.

Specifications:

Built From: 2017

Frequency Range: 56Hz - 23kHz +/- 3dB

High Frequency Driver: 1" (2.54cm) Titanium Dome Tweeter mated to a composite coated round Tractrix® Horn

Low Frequency Driver: 6.5" (16.51cm) Cerametallic Woofer

Sensitivity: 95 dB @ 2.83V / 1m

Coverage Angle: 100°

Power Handling: 50W RMS / 200W Peak

Impedance: 8 Ohm Compatible

Enclosure Material/Type: ABS/Infinite Baffle

Finish: Black Baffle/Frame, White Paintable Grille

Included in Box: Round Grille, Square Grille, Paint Shield

Install Kit: IK-650-C (Sold Separately)

Fire Rated Enclosure: ME-650-C (Sold Separately)

Approximate Dimensions:

Diameter: 9.2"

Cutout Dimensions: 8.3"

Mounting Depth: 4.34"

Approximate Weight:

Unit: 7 lbs

Shipping: 9 lbs
