1" titanium compression driver with wide-dispersion phase plug
6-1/2" woofer
handles up to 80 watts of continuous power
frequency response: 56-20,000 Hz (±4dB)
sensitivity: 90 dB
calculated max. continuous output: 106 dB
impedance: 8 ohms
100° coverage angle
rated IPX6 weather-resistant
bass-reflex design tuned with three Tractrix® ports
Tractrix Hyperfold Port™ extends length using a five-step folded design for maximum bass performance

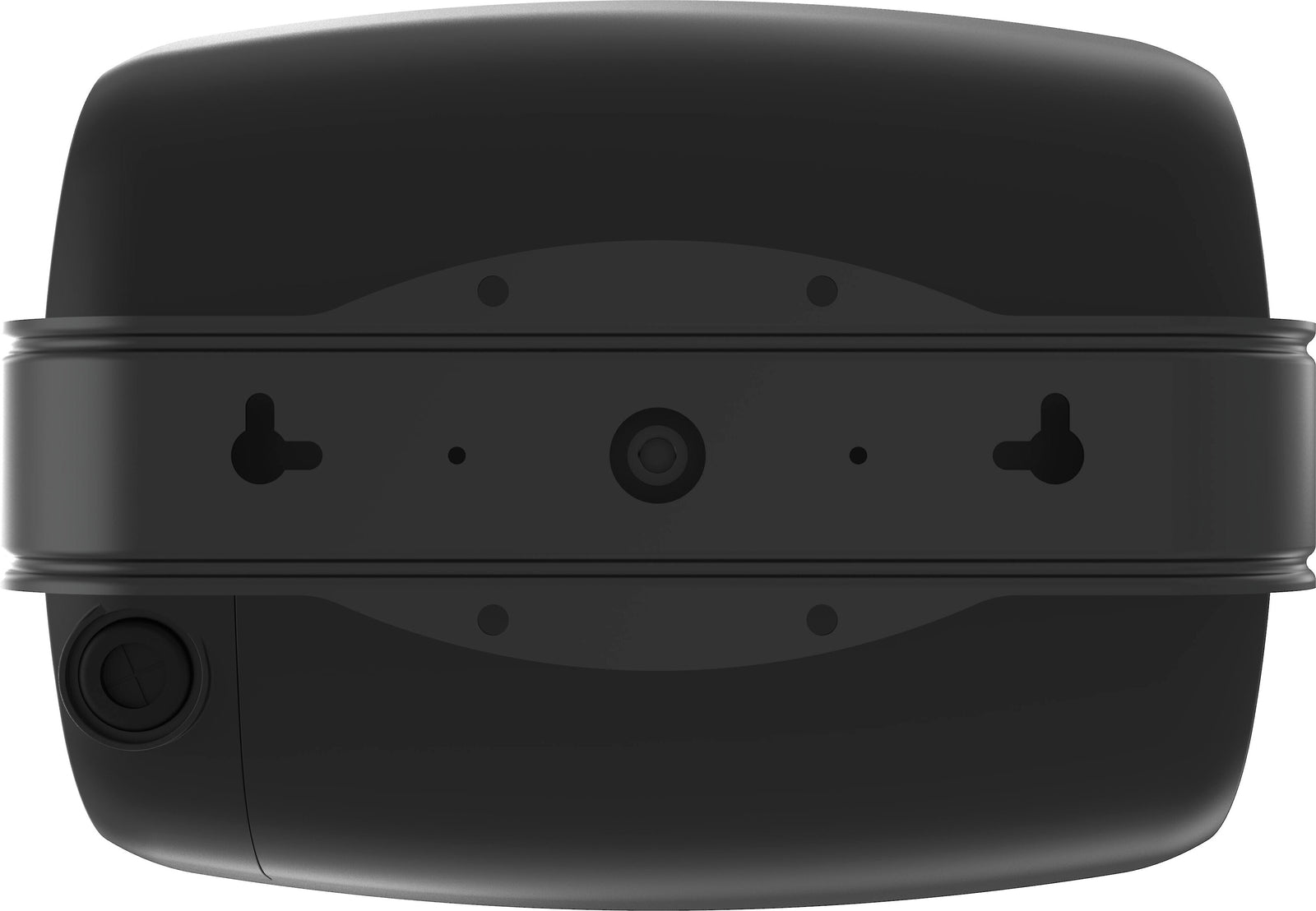

adjustable "C-style" bracket for easy wall-mounting
multi-tap transformer for use in 70V/100V systems
70-volt taps: 7.5, 15, 30 and 60 watts
100-volt taps: 15, 30 and 60 watts
8-ohm bypass for use with traditional receivers and amplifiers

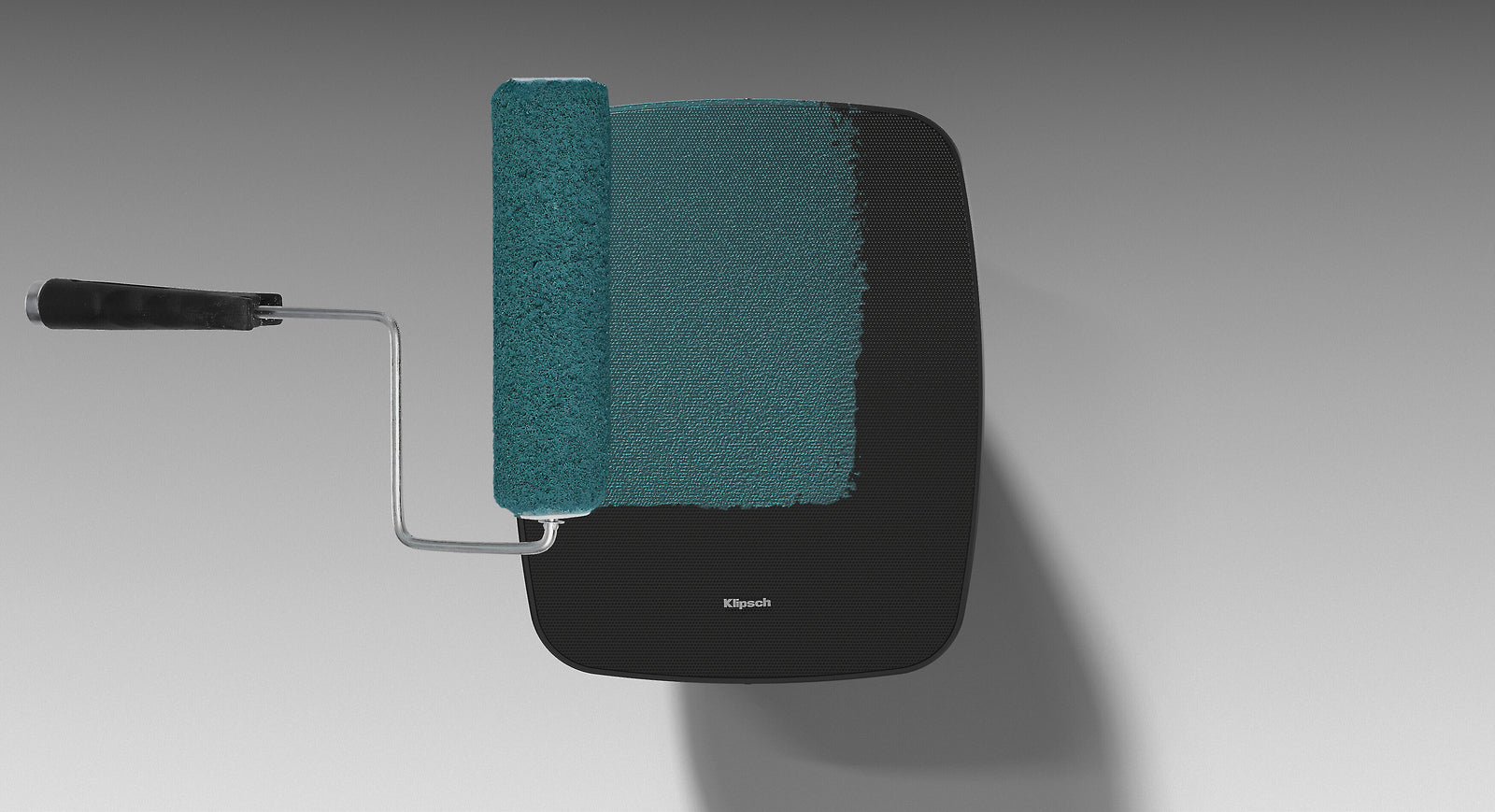

paintable to match your decor
4-pin Phoenix terminal for speaker wire connections
dimensions (measured by Crutchfield): 12-3/4"W x 10-1/8"H x 9-7/16"D, including bracket
weight: 11.25 lbs.
warranty: 5 years
What's in the box
Commercial 70V/100V 2-way speaker (black)
Mounting bracket (installed)
4-Pin Euroblock connector (installed)
Two 6mm machine screws
Owner's manual
About this item
Written by Crutchfield's James Ralston
Clear outdoor sound, courtesy of Klipsch

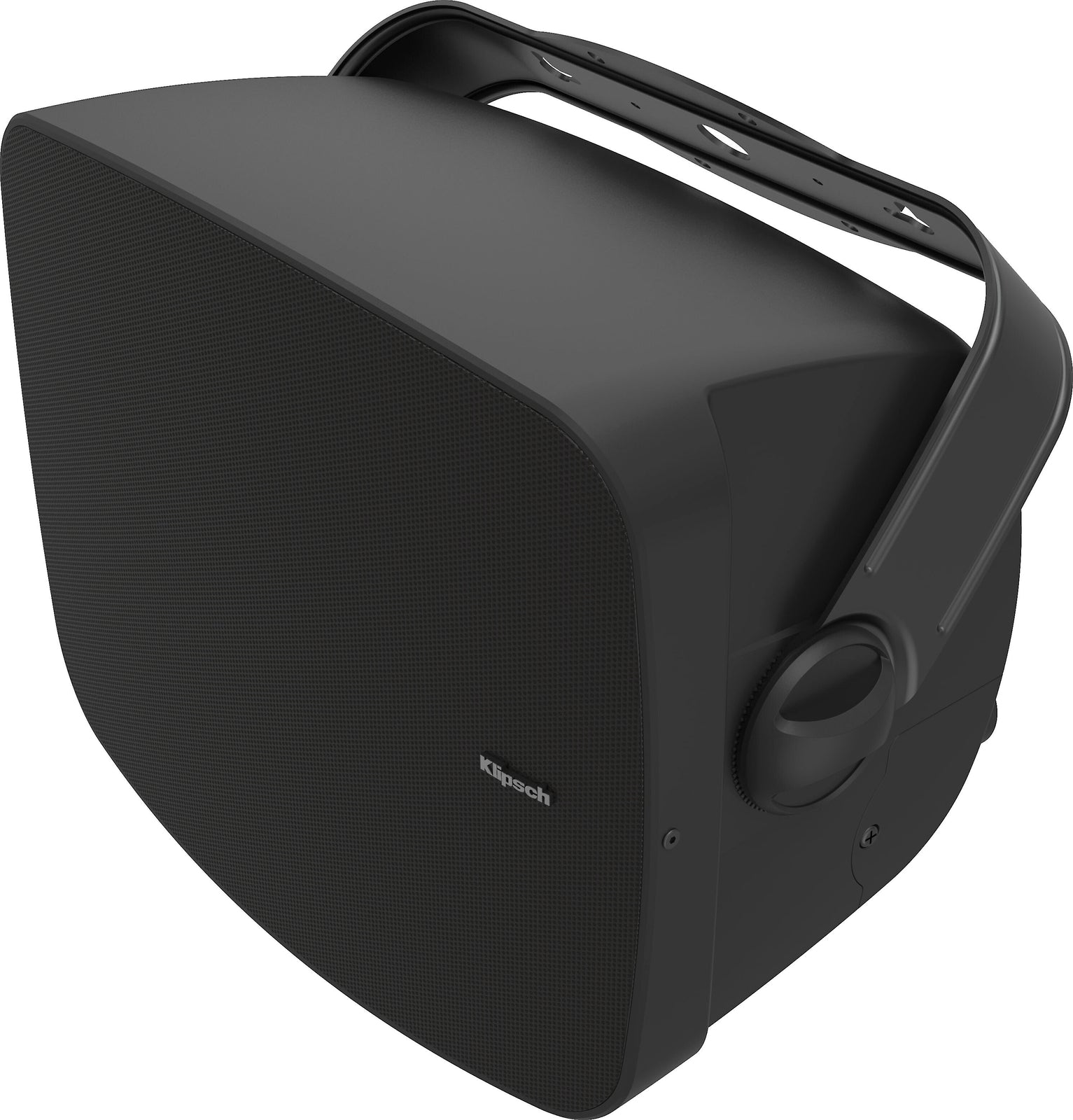

The PSM-650-T uses a 6-1/2" woofer and 1" titanium compression driver to serve up solid, low-distortion Klipsch sound for covered restaurant patios, outdoor bars, and other partially exposed commercial spaces. An all-new Tractrix® port design allows maximum bass response from minimum cabinet volume. The built-in multi-tap transformer gives you a range of options for distributing power to multiple speakers in a 70- or 100-volt installation. And the C-shaped bracket makes for simple surface-mounting and handy angle adjustments.
