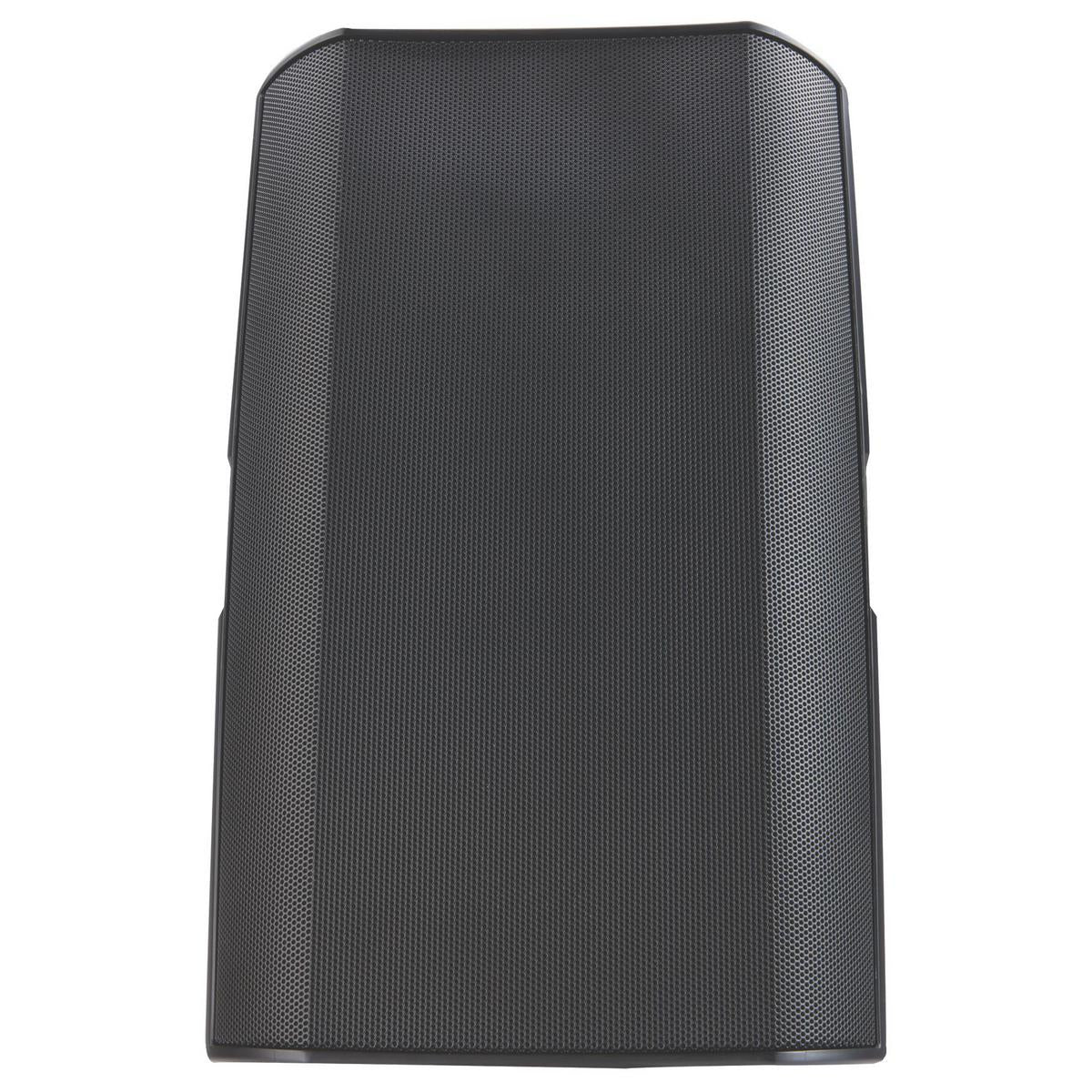

QSC AD-S10T-BK-TD AcousticDesign Series 10" Surface Mount Black Loudspeaker

QSC AD-S10T-BK-TD AcousticDesign Series 10" Surface Mount Black Loudspeaker

PRICE:
Regular price $917.00 USD
Regular price $917.00 USD Sale price $917.00 USD
Sale Sold out

CONDITION: New

Shipping calculated at checkout.

product description

QSC’s AcousticDesign™ S10T surface mount loudspeakers are professional, 70/100V, 10-inch, two-way, full-range systems ideal for a wide variety of foreground and background sound reinforcement applications. Ease-of-installation is the driving principle behind QSC’s next generation of small format, surface mount loudspeakers. Innovations found on AD-S loudspeakers enable designers and integrators to quickly and easily specify and install a system. AD-S loudspeakers are also a perfect solution to serve ancillary loudspeaker needs as part of a larger installed sound system.

Housed in rugged ABS enclosures for long-term durability, S10T loudspeakers employ DMT™ (Directivity Matched Transition) which matches the LF and HF coverage at the crossover point. This ensures even coverage across the listening plane for smooth, coherent audio reproduction. The 1.4in diaphragm, 1-in exit compression driver on the S10T delivers crisp, detailed high-frequency reproduction and when combined with the matched woofers, provides full bandwidth reproduction. To further enhance performance, tunings using QSC Intrinsic Correction techniques are available for Q-Sys and future QSC amplifiers. Moreover, the low saturation transformers offer premium performance on 70/100V distributed audio lines.

Installers will appreciate flexible mounting options. Euroblock connectors allow pre-wiring of the system and the included

X-Mount hardware enables the installer to mount the bracket and then simply lift the loudspeaker onto the mount and lock it into place. Moreover, the loudspeaker can attach to its mount on any plane to facilitate multiple deployment configurations.

AD-S loudspeakers can easily be mounted to any weight bearing, flat surface. Knurled surfaces on the mount’s pivot points ensure that the loudspeaker deployment angle stays fixed and will not slip over time. No special tools are required to install or adjust the loudspeaker angle. S10T models also feature M10 installation points for suspending the loudspeaker via eye-bolts as well as mounting points for an optional yoke bracket.

S10T loudspeakers meet IEC60529 IP-54 for dust and splash resistance and feature sealed input panels and powder coated aluminum grilles for added weather resistance.

Presenting a clean, unobtrusive look, AD-S grilles are unadorned eliminating the need to cover obtrusive logo treatments. AD-S loudspeakers are available in either black (RAL 9011) or white (RAL 9010) and may be painted to match any décor.

To minimize impact and disposal fees at the job site, all AD-S loudspeakers are packaged in environmentally friendly, recyclable cartons.
,
Speaker: 10" Two-Way
Power: 250w Continuous / 1000w Peak
Coverage Angle: 90° Axisymmetric
Impedance/Transformer: 8 Ohms / 70V / 100V
Peak SPL: 122 dB
