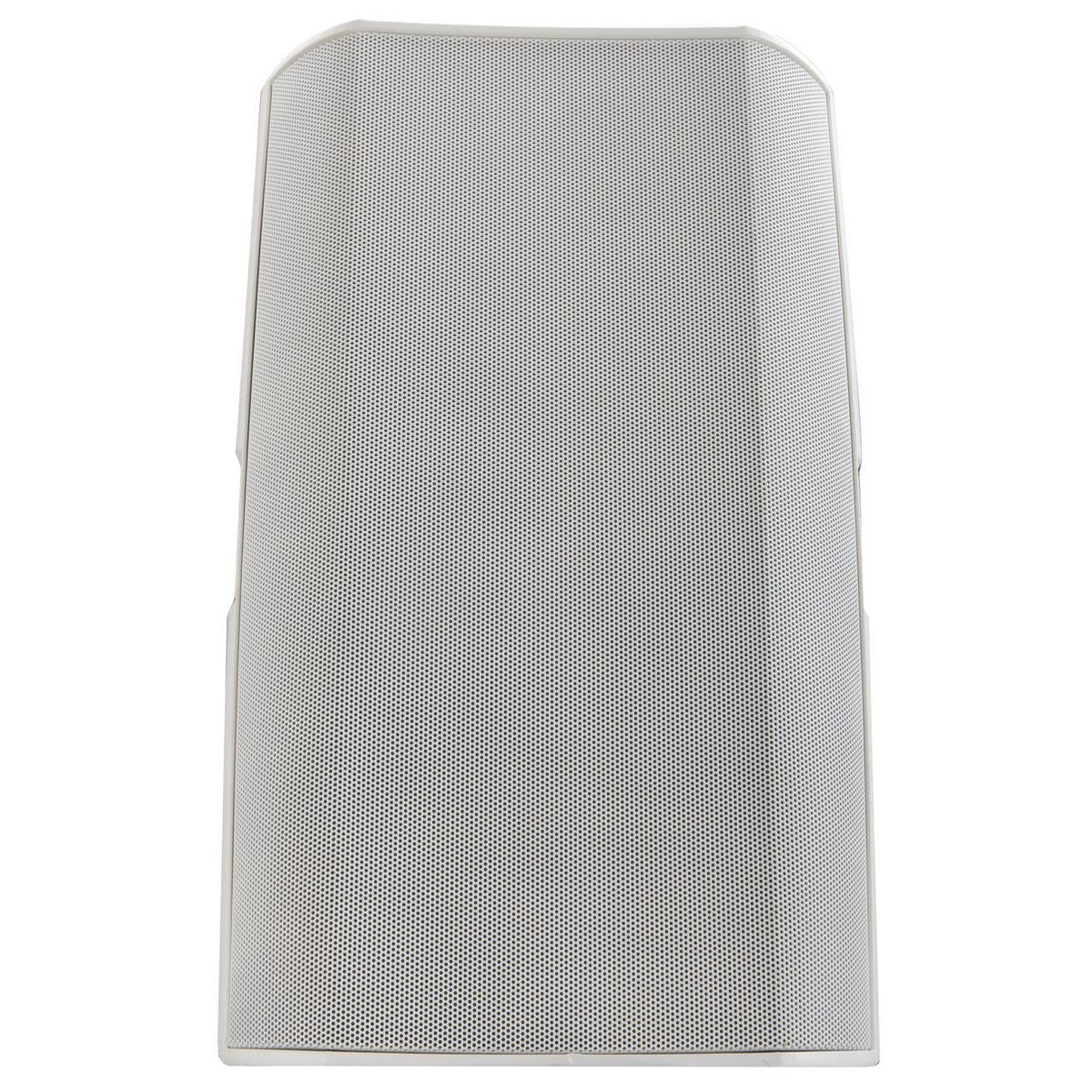

QSC’s AcousticDesign™ S12 surface mount loudspeakers are professional, 12-inch, two-way, full-range systems ideal for a wide variety of foreground and background sound reinforcement applications. Ease-of-installation is the driving principle behind QSC’s next generation of small format, surface mount loudspeakers. Innovations found on AD-S loudspeakers enable designers and integrators to quickly and easily specify and install a system. AD-S loudspeakers are also a perfect solution to serve ancillary loudspeaker needs as part of a larger installed sound system.
Housed in rugged ABS enclosures for long-term durability, S12 loudspeakers employ DMT™ (Directivity Matched Transition) which matches the LF and HF coverage at the crossover point. This ensures even coverage across the listening plane for smooth, coherent audio reproduction. The 1.4in diaphragm, 1-in exit compression driver on the S12 delivers crisp, detailed high-frequency reproduction and when combined with the matched woofers, provides full bandwidth reproduction. To further enhance performance, tunings using QSC Intrinsic Correction techniques are available for Q-Sys and future QSC amplifiers.
Installers will appreciate flexible mounting options. Euroblock connectors allow pre-wiring of the system and the included
X-Mount hardware enables the installer to mount the bracket and then simply lift the loudspeaker onto the mount and lock it into place. Moreover, the loudspeaker can attach to its mount on any plane to facilitate multiple deployment configurations.
AD-S loudspeakers can easily be mounted to any weight bearing, flat surface. Knurled surfaces on the mount’s pivot points ensure that the loudspeaker deployment angle stays fixed and will not slip over time. No special tools are required to install or adjust the loudspeaker angle. S12 models also feature M10 installation points for suspending the loudspeaker via eye-bolts as well as mounting points for an optional yoke bracket.
S12 loudspeakers meet IEC60529 IP-54 for dust and splash resistance and feature sealed input panels and powder coated aluminum grilles for added weather resistance.
Presenting a clean, unobtrusive look, AD-S grilles are unadorned eliminating the need to cover obtrusive logo treatments. AD-S loudspeakers are available in either black (RAL 9011) or white (RAL 9010) and may be painted to match any décor.
To minimize impact and disposal fees at the job site, all AD-S loudspeakers are packaged in environmentally friendly, recyclable cartons.
Speaker: 12" Two-Way
Power: 300w Continuous / 1200w Peak
Coverage Angle: 75° Axisymmetric
Impedance: 8 Ohms
Peak SPL: 126 dB
