product description

The CX 2-Channel Series is designed to meet the specialized needs of sound contractors. Eight models have been designed from the ground up, combining QSC's exclusive PowerLight® technology with specific features to meet the requirements of fixed installations. With high output power, versatile loading options, high thermal capacity and proven reliability, the CX Series is the ideal solution to any permanently installed sound system.

The model line incorporates QSC's exclusive PowerLight technology and are equipped with many contractor specific features including 1 dB detented gain controls for easily repeatable settings and a custom security cover for tamper-proof installations. Active inrush limiting eliminates AC inrush current, cutting the need for power sequencers.

CX amplifiers also include an HD15 Data Port connector to interface with Q-Sys and QSControl networked audio systems, for remote amplifier monitoring and control.

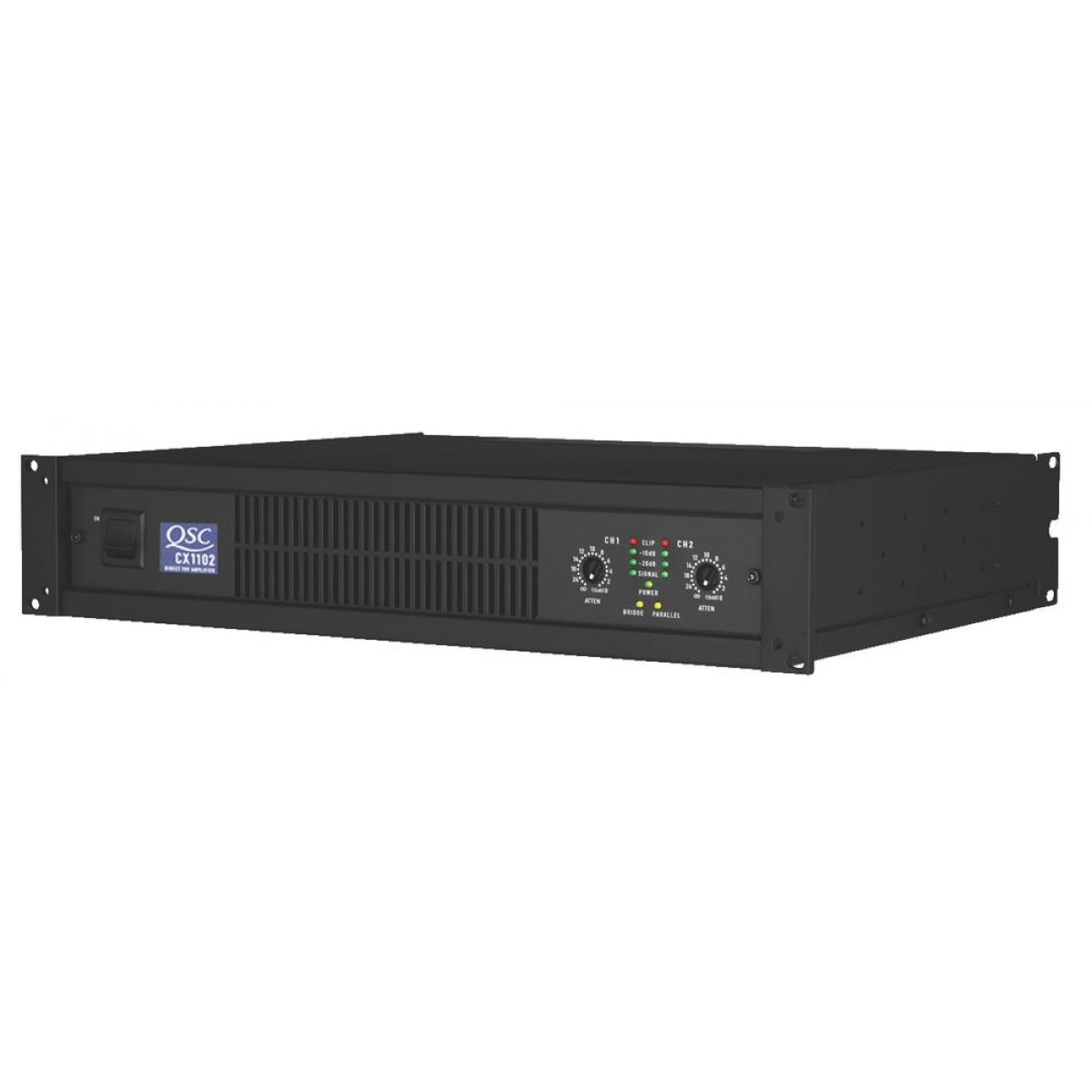

The versatile CX1102 has the ability to drive both 70 volt and low impedance loads for maximum flexibility.

Frequency Response: 20 Hz-20 kHz, +/- 0.2 dB

Damping Factor: Greater than 500

Input Impedance: 6k ohms unbalanced, 12k ohms balanced

Input Clipping: 10 Vrms (+22 dB)

Cooling: Variable-speed fan, rear-to-front air flow

Connectors, each channel
Input: 3-pin XLR & 3-pin detachable terminal blocks (1 each per channel)
Output: Safety-shrouded barrier strip

Amplifier Protection
Full short circuit, open circuit, thermal, ultrasonic, and RF protection.
Stable into reactive or mismatched loads.

Load Protection
On/Off muting, DC-fault power supply shutdown

Dimensions
19" (48.3 cm) wide, 3.5" (8.9 cm) tall (2 RU),
14" (35.6 cm) deep (from front mounting rails)

Weight
21 lbs (9.5 kg) net
27 lbs (12.3 kg) shipping
