Power and processing:
11-channel amplifier
120 watts per channel into 8 ohms (20-20,000 Hz) at 0.09% THD, with 2 channels driven
Dolby Atmos and DTS:X® surround sound decoding
Dolby Speaker Virtualization and DTS Virtual:X® create three-dimensional effects without height speakers
IMAX® Enhanced reproduces the full dynamic range of specially encoded IMAX soundtracks from compatible sources
Digital Cinema Auto Calibration IX and 360 Spatial Sound Mapping calibrate the sound to match your room and speaker configuration for an expansive, immersive soundstage
Sony's DSEE Ultimate accurately upscales audio to near-high-resolution sound quality
built-in high-performance 32-bit DAC
premium componentry meets ES standards for audio performance
control the receiver with your smartphone using the Sony Music Center app
compatible with Sony's SA-RS3S and SA-RS5 wireless rear speakers and SA-SW3 and SASW5 wireless subwoofers
Digital and streaming music options:
Chromecast built-in for streaming over Wi-Fi with a wide range of compatible apps on your mobile device
works with Google Assistant voice control devices (sold separately)
Spotify® Connect lets you play music using the Spotify app on your mobile device (subscription required)
Apple AirPlay 2 lets you stream directly from an iPhone® or iPad® and ask Siri to play Apple Music®
supports multi-room audio with compatible wireless speakers
built-in Bluetooth for wireless music listening with smartphones, tablets, and compatible computers
compatible with Sonos Port — receiver turns on automatically and sets the right input when selected in the app
works as a Roon player (requires subscription and Roon Core running on your network)
Roon Core is media server software that runs on your computer, NAS drive, or other compatible hardware
Multi-room audio/video:
three-room/three-source output
HDMI dual-zone switching for watching video content from different sources in two zones simultaneously
powered stereo output for Zone 2
analog stereo audio outputs (variable) for Zones 2 and 3

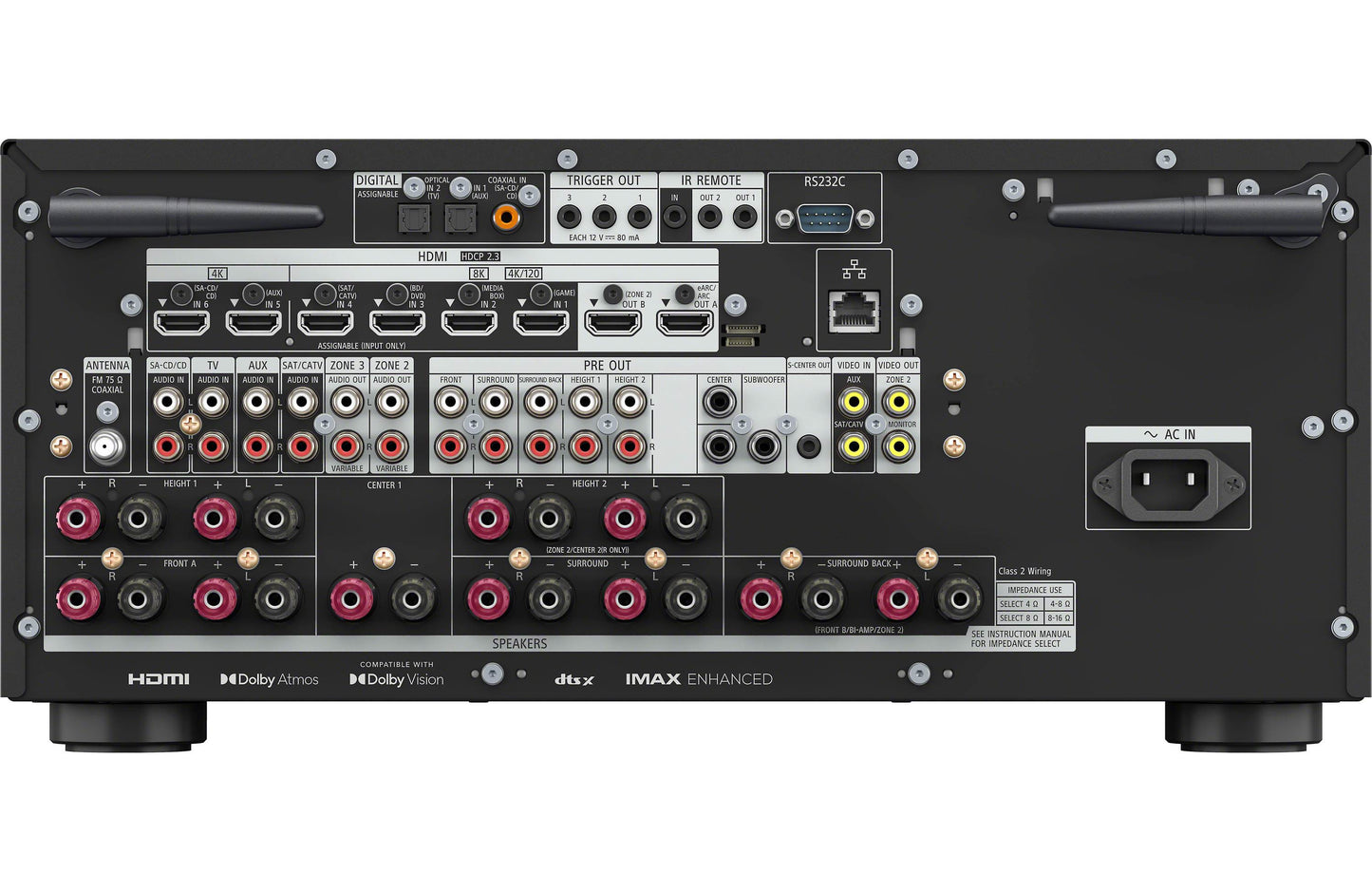

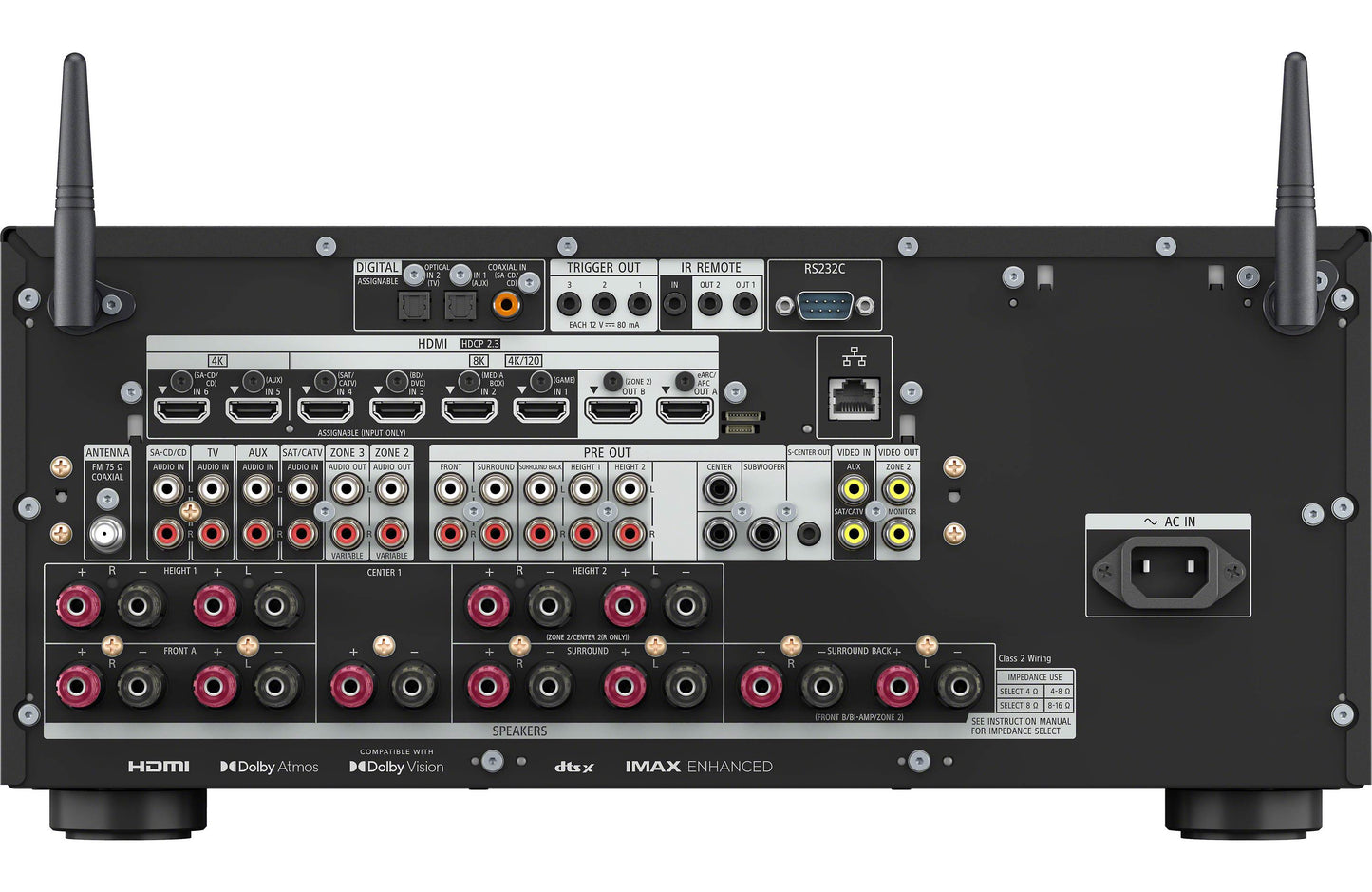

Connections:
HDMI 2.1 audio/video switching: 7 in, 2 out (including 1 front-panel input)
4 rear-panel inputs support 8K/60Hz and 4K/120Hz video
1 front-panel input supports 4K video
HDCP 2.3 technology ensures compatibility with Ultra HD sources and TVs
supports HDR10, Dolby Vision®, HLG, and IMAX Enhanced
gaming-optimized video processing technologies for a smooth, lag-free gaming experience
Variable Refresh Rate (VRR) and Auto Low Latency Mode (ALLM) reduce or eliminate lag and frame tearing
supports ARC (Audio Return Channel) and eARC (Enhanced Audio Return Channel)
eARC receives uncompressed surround sound signals including Dolby Atmos and DTS:X via the HDMI connection with your compatible TV
2 composite video inputs
2 composite video outputs
digital audio inputs: 2 optical and 1 coaxial
4 analog stereo audio line-level inputs
no phono input — to connect a turntable you'll need to add a phono preamp
11.2-channel preamp outputs for use with optional external power amps
outputs for 11 speakers (Front L/R, Center, Surround L/R, Surround Back L/R, Height 1 L/R, Height 2 L/R)
front-panel USB port for firmware updates and system setting backup
detachable power cable
General features:
center channel enhancements include Center Speaker Lift Up, BRAVIA™ Acoustic Center Sync, and Dual Center Speaker
intuitive on-screen user interface (via HDMI only)
setup via the front panel, through the Graphical User Interface (GUI), or with a web browser
remote control
FM tuner
built-in support for Control4, Crestron, Savant, and other home automation systems
RS-232C and remote (IR) connections for use with optional third-party controllers
three 12-volt trigger outputs for sending power commands to external gear, like a power amplifier or cooling fan
Ethernet port for wired connectivity to your network
16-15/16"W x 7-5/8"H x 18-5/8"D (9-3/4"H with Wi-Fi antennas raised)
weight: 42.4 lbs.
warranty: 5 years
MFR # STRAZ5000ES
What's in the box:
11.2ch AV receiver
5' AC power cord
Front-panel conver
Remote control (RMT-AA511U)
2 "AAA" batteries
Automatic calibration microphone
3-Piece mic stand
FM wire antenna
Operating Instructions
Startup Guide
Speaker Connection Note
Warranty Information
End User License Agreement
