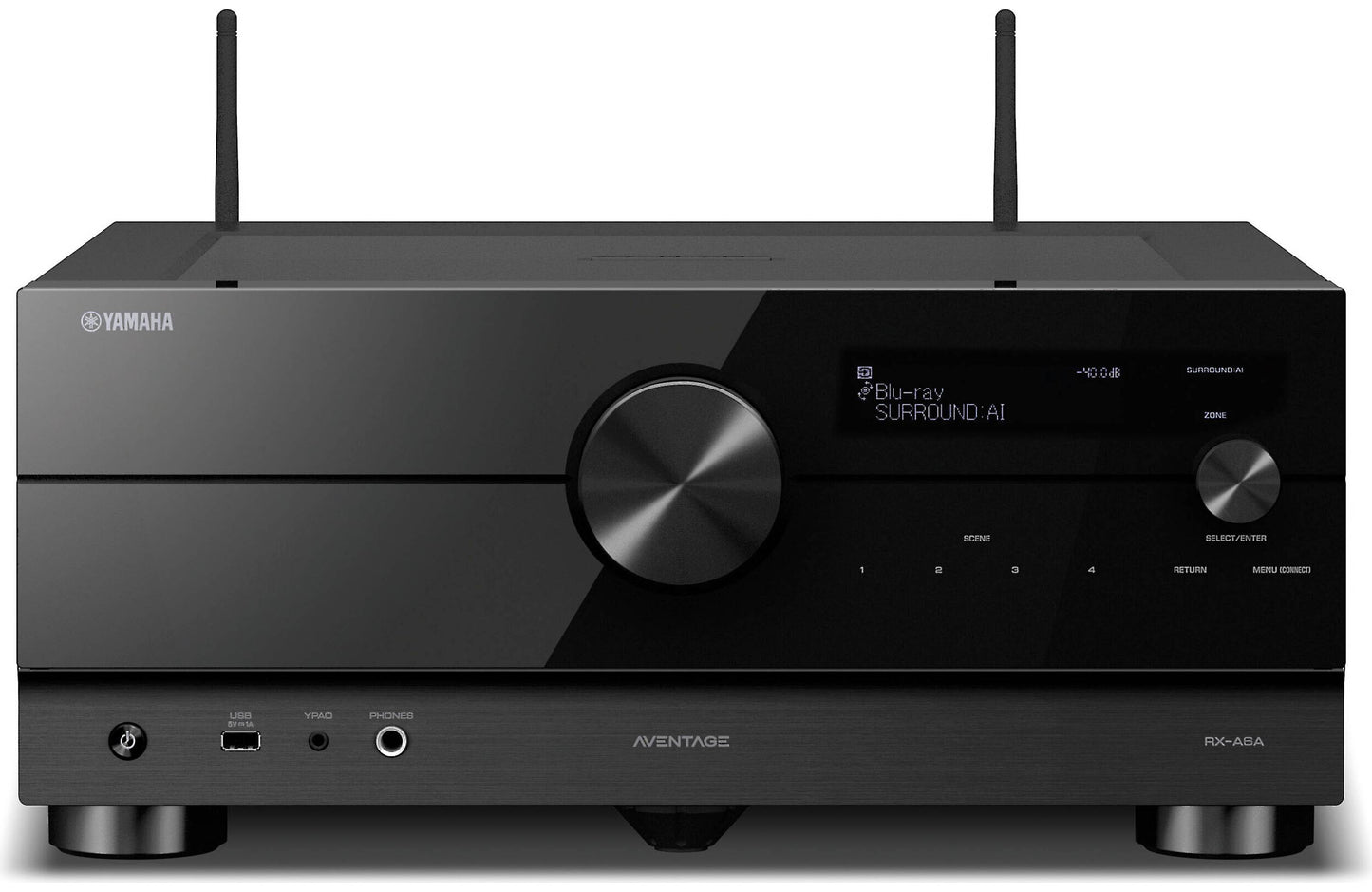

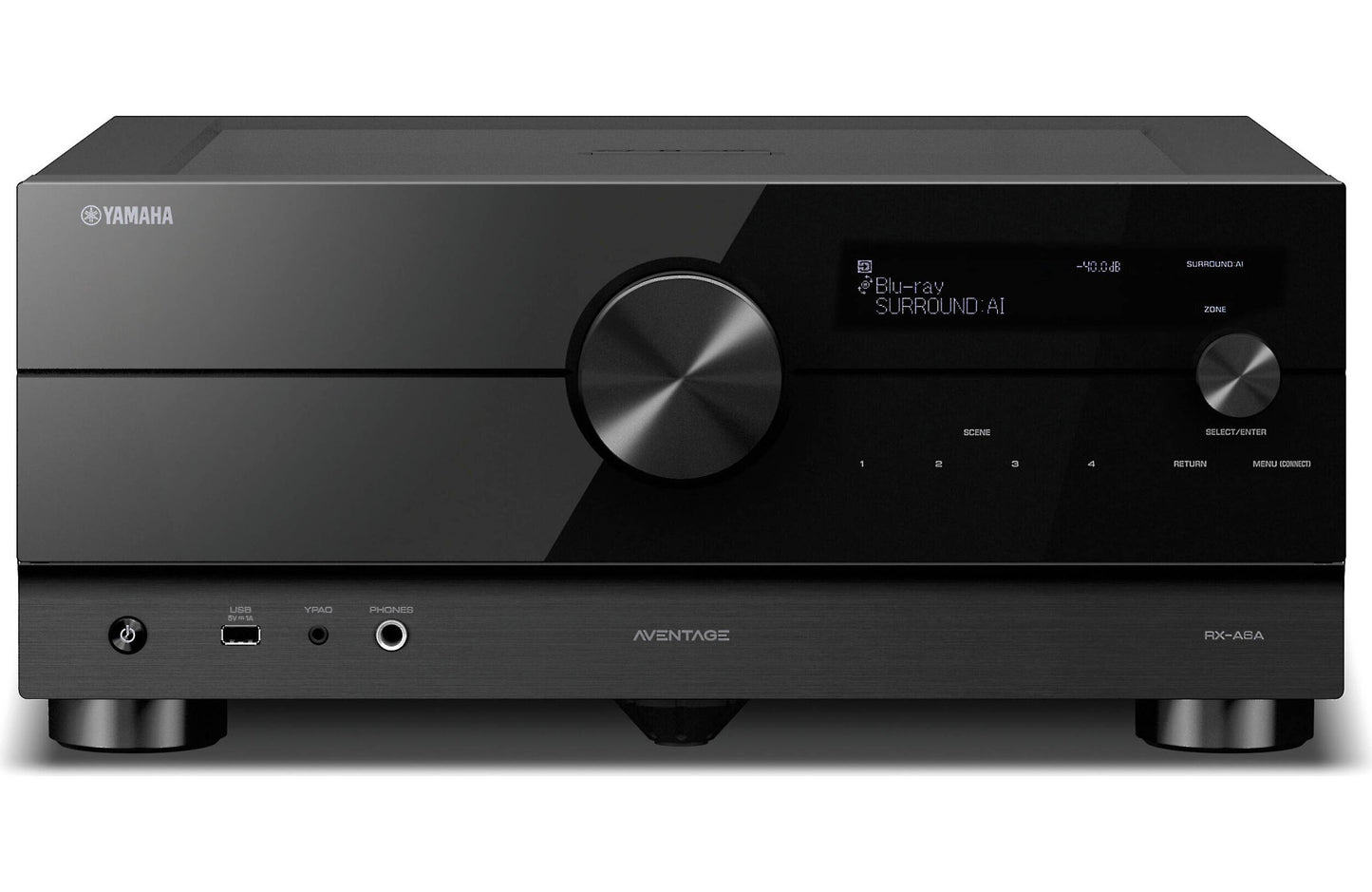

product description

Power and processing:

9-channel amplifier

150 watts per channel into 8 ohms (20-20,000 Hz) at 0.06% THD, with 2 channels driven

high slew rate design for clear, consistent performance across a wide frequency range

Dolby® and DTS® surround sound decoding

Cinema DSP HD3 adds richness and depth to music and movie soundtracks

Surround:AI™ technology analyzes your content and creates optimal surround effects in real time

H-shaped cross frame adds additional stability to the chassis while reducing vibrations

YPAO (Yamaha Parametric Room Acoustic Optimizer) automatic speaker calibration

Digital and streaming music options:

built-in dual-band Wi-Fi for listening to music from a networked PC, free internet radio, and music services

MusicCast wirelessly connects compatible Yamaha components together for seamless whole-home audio

works with Amazon Alexa and Google Assistant voice control devices

Apple AirPlay 2 lets you stream directly from an iPhone® or iPad® and ask Siri to play Apple Music®

built-in Bluetooth for wireless music listening with smartphones, tablets, and compatible computers

Multi-room audio:

three-room/three-source output

Zone 2 and 3 stereo preamp outputs for use with optional external amplifiers

HDMI features:

HDMI 2.1 audio/video switching: 7 in, 3 out

gaming-optimized video processing technologies for a smooth, lag-free gaming experience

supports ARC (Audio Return Channel) and eARC (Enhanced Audio Return Channel)

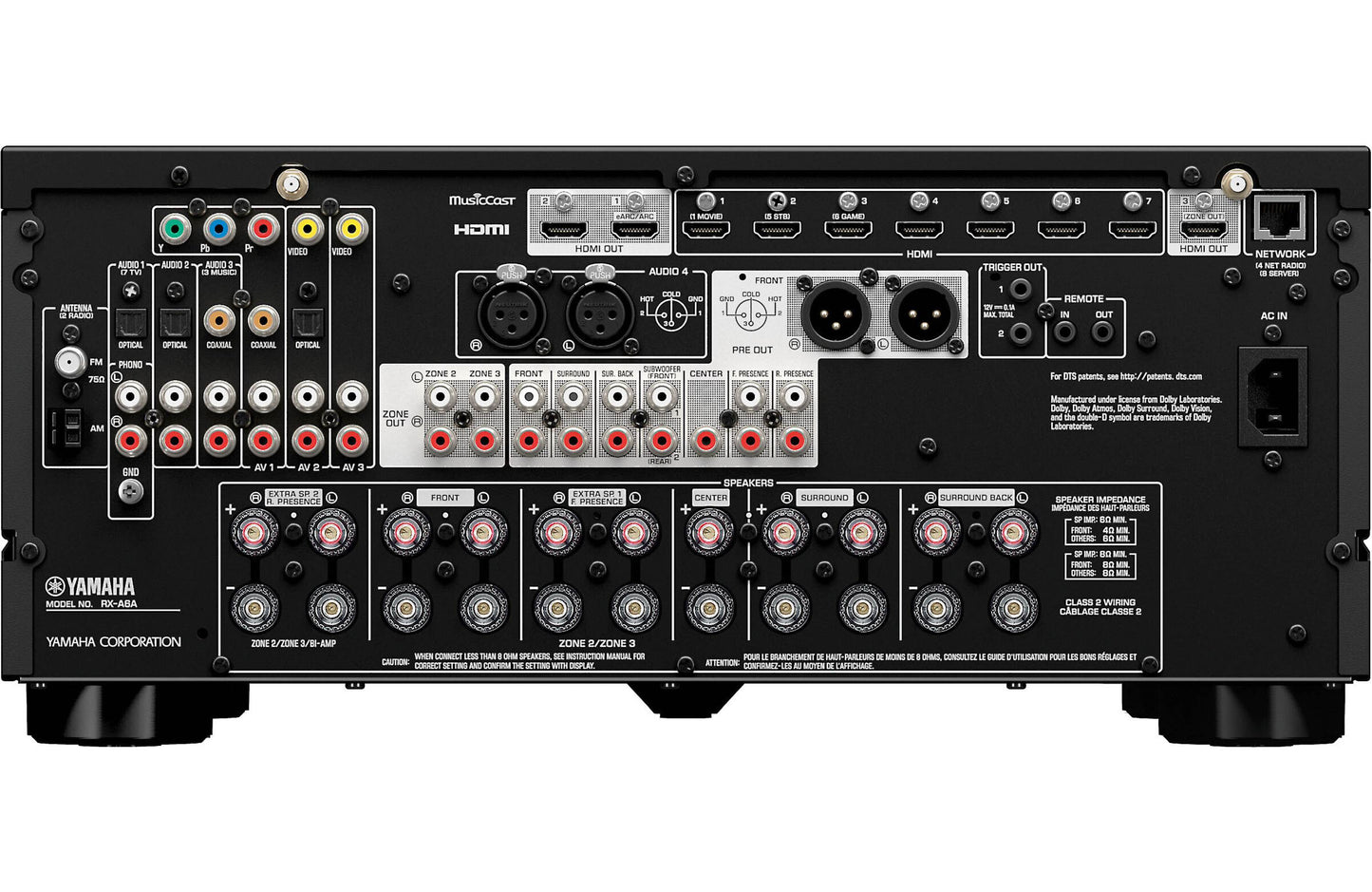

Other connections:

analog video inputs: 2 composite, 1 component

digital audio inputs: 3 Toslink optical, 2 coaxial

5 analog stereo RCA audio inputs

MM (moving magnet) phono input for connecting a turntable

stereo balanced XLR connections: 1 input, 1 output

front-panel USB port for audio playback from USB flash drives

11.2-channel RCA preamp outputs

outputs for 11 speakers (Front L/R, Center, Surround L/R, Surround Back L/R, Front Presence L/R, Rear Presence L/R)

receiver can power a maximum of 9 channels at once

full-sized front-panel headphone jack

Dimensions and other info:

free MusicCast app lets you use your Apple® or Android™ device as a Wi-Fi remote

handheld remote control included

17-3/16"W x 7-1/2"H x 18-3/16"D (10-11/16"H with Bluetooth and Wi-Fi antennas raised)

weight: 41.2 lbs.

warranty: 3 years

MFR # RX-A6ABL

What's in the box:

Yamaha AVENTAGE RX-A6A owner's manual

9.2ch AV receiver

6.5 AC power cord

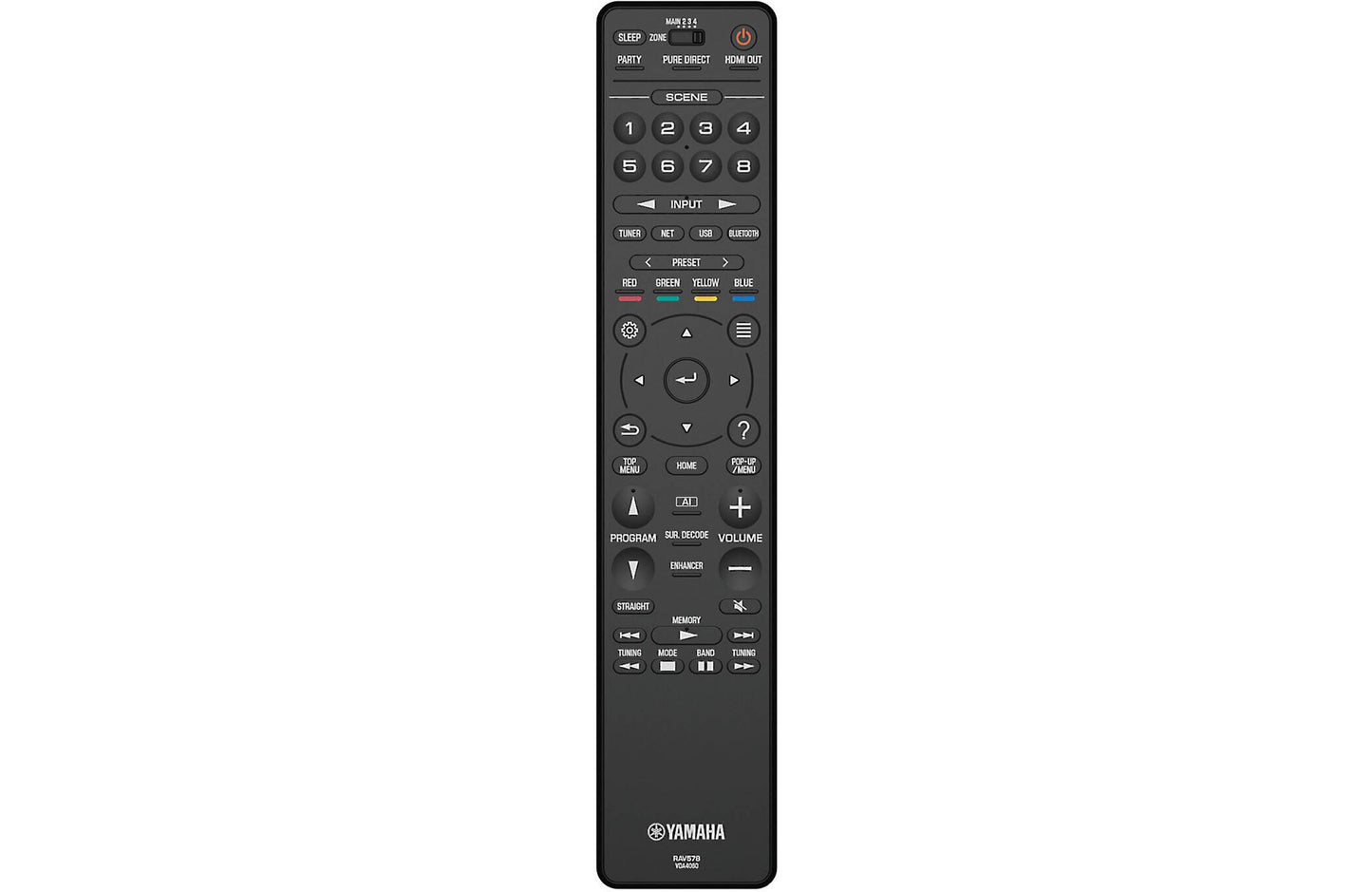

Remote control (RAV578)

2 "AAA" batteries

YPAO microphone

Mic base/stand

2 WLAN/Bluetooth antennas (pre-installed)

FM wire antenna

AM loop antenna

Quick Start Guide

Warranty Information

Product Registration

Firmware Update note

Spotify brochure

"Worldwide Representatives Offices" sheet

Safety brochure
